A denoising algorithm for bridge cable force monitoring data based on mathematical morphology
Advances in Bridge Engineering volume 4, Article number: 28 (2023)
Abstract
A mathematical morphological filterbased denoising method is developed in this study for bridge cable force monitoring data. Structure elements, one of the most important parameters in the mathematical morphology, dominate denoising effects. The denoising effects subject to single structure element and multistructure element filters are discussed based on the simulation signals. The results indicate that the denoising effects by using the spherical structure element are better than using the straight line or rhombic structure element. Moreover, the multistructure element filter outperforms the single one. Through simulation analysis, the denoising performance of the lowpass filter, wavelet filter and morphological filter is compared. The results show that the performance of the wavelet and morphological filters is better than that of the lowpass filter. For low signaltonoise signals, the performance of the wavelet filter is superior. With the increase of signaltonoise ratio, the morphological filters show more advantages. Taking the cable force monitoring data of the 3rd Nanjing Yangtze River Bridge as an example, the denoising performance of the wavelet and morphological filters is discussed. The results show that both the wavelet filters and morphological filters have satisfactory denoising effects. The mathematical morphology method can provide an optional and effective denosing choice, which enriches the means of denoising for bridge monitoring data.
1 Introduction
Benefited from the rapid development of modern sensing, computing and signal processing technologies, structural health monitoring and integrity evaluation for large span bridges have become a research focus in the engineering and academic circles (Ren et al. 2019). However, monitoring signals are inevitably contaminated by noises derived from thermal, magnetic, and electrical effects of sensors and signal transmission devices (Huang et al. 2017), which cover data features of interest and disrupt the accuracy of structural damage detection and condition assessment (Shuang Sun et al. 2021). Therefore, it is highly desired to separate noises from raw signals before data mining.
Commonly used denoising methods include time domain averaging, lowpass filtering, waveletbased filtering, etc. (Yadav et al. 2015). The time domain averaging involves extensive data volumes and relies on time mark information. The lowpass filtering focuses on the highfrequency feature of noises by eliminating components higher than a specific order. The waveletbased filtering offers a higher level of details compared to lowpass filtering methods. However, the effectiveness of the waveletbased filtering is largely dependent on the architecture of filters. Shortcomings, such as time lag and phase shift, lie in the aforementioned methods since they are developed based on time, frequency, or timefrequency domains, making it challenging to distinguish between signal and noise with overlapping frequencies (Li et al. 2016).
Mathematical morphology was derived from integra geometry and stochastic set theory, which was first used in power system and recently introduced to data mining(Gautam and Brahma 2009, 2012). The mathematical morphology filtering depends only on the local shape characteristics of signals. By means of mathematical morphological transformation, it decomposes a mixed signal into components with its main shape features (Ly et al. 2015). The mathematical morphology has been widely used in the image processing, shape analysis, pattern recognition and computer vision (Mukhopadhyay and Chanda 2000, 2002). In signal processing, mathematical morphological filters also show advantages over traditional methods for it has nonlinear characteristics, which is effective in suppressing noises such as spikes, noises, and edges. Researchers have proved mathematical morphological filters are powerful for seismic data denoising (Li et al. 2016; Huang and Wang 2018; Liu et al. 2019a). Liu (Liu and Yan 2020) found that timefrequency peak filtering performance for seismic signals could be improved by adding mathematical morphological algorithm. Moreover, for transcranial magnetic stimulation signals, Liu et al. (2022) developed a combined morphological filtering method to reduce denoising time.
However, To the best of the author’s knowledge, few research studies were reported to employ mathematical morphological filters in bridge monitoring data. Monitoring data of large span bridges such as cable force can provide key index for bridge condition assessment, which should be preprocessed with optimal filtering methods. In this paper, based on signal characteristics of bridge cable force monitoring data, the mathematical morphology theory is introduced in building a mathematical morphological filter for signal denoising. The denoising performance of the morphological filter is evaluated by comparing with that of the lowpass filter and waveletbased filter.
2 Fundamentals of mathematical morphology
2.1 Basic transformations of mathematical morphology
The fundamental principle of mathematical morphology is to design a structure element (known as a “probe”) to collect signal information. It is moved across the signals with the aim of matching and extracting the desired signal while preserving details and suppressing noises (Sharma and Sagar 2015). The basic operations of mathematical morphology include erosion, dilation, opening and closing. Erosion and dilation operations are associated with identifying local minimum and maximum values, respectively. Erosion are effective in eliminating small spikes in signals, while dilation can fill the gaps. Given that bridge monitoring signals are generally onedimensional, this study only introduces the mathematical morphological transformation in the one dimension.
The raw signal \(f\left( n \right)\) is a discrete function defined on \(F=\left( {0,1, \cdots ,N  1} \right)\), and the sequence structure element \(g\left( m \right)\) is a discrete function defined on \(G=\left( {0,1, \cdots ,M  1} \right)\)(\(N \geqslant M\)). The erosion and dilation of \(f\left( n \right)\) with respect to \(g\left( m \right)\) are defined as follows:
\(m\in\;0,\;1,\;\cdots\;,\;M1\)
\(m\in\;0,\;1,\;\cdots\;,\;M1\)
where \(\Theta\) is the erosion operator and \(\oplus\) is the dilation operator. The opening and closing operations of \(f\left( n \right)\)with respect to \(g\left( n \right)\), derived from the defined erosion and dilation operations, are defined as
where \(\circ\) and \(\bullet\) denote the opening and closing operations, respectively.
2.2 Construction of mathematical morphological filters
The opening operations are beneficial for filtering peak noises and removing spikes. On the other hand, the closing can be used to smooth or reduce the valley noise, and to fill the trenchlike structure (Haralick et al. 1987; Maragos and Schafer 1987). Based on the morphological opening and closing operations, three types of filters can be designed: the alternating filter, the hybrid filter and the alternatinghybrid filter.
The alternating filter is defined as
where OC(OpeningClosing) refers to an alternating filtering operation with opening followed by closing; and CO(ClosingOpening) is an alternating filtering that is first closing and then opening.
The hybrid filter is defined as
where HF is a hybrid filter.
The alternatinghybrid filter is defined as
where AH is an alternatinghybrid filter.
Deviation is usually seen in the alternating filter outputs since the contraction of the opening operation causes a smaller output for the OC filter. Whist, the expansion of the closing operation causes a larger output for the CO filter (Caesarendra et al. 2015). In order to address the unidirectional offset of the signal output, hybrid filters or alternatinghybrid filters are generally selected for filtering in signal processing.
2.3 Structure element
Structure elements have a great impact on the effectiveness of signal filtering. Commonly used structure elements include straight lines, rhombuses, spheres, etc. The choices of the structure elements should be determined by the signal distribution shape over time. The objective is to make its structure resembling the geometrical characteristics of the signal as closely as possible (Li et al. 2016). An example of straight line structure element is shown in Fig. 1.
3 Mathematical morphological filter design
Generally, interference signals in bridge monitoring data can be categorized into white noise interference and electromagnetic transient interference (Mo et al. 2023). Electromagnetic transient produces spiky transient waveforms in monitoring data, which can be removed by gross error elimination (Amiri and Jensen 2016). Mathematical morphological filters are designed primarily for white noise interference.
The mathematical morphological approach is based on filling detection of structure elements, the shape of which is a key factor affecting the filtering effect. The filtering effects of the straight lines, rhombuses and spheres are compared with each other in the following sections.
3.1 Single structure element filter design

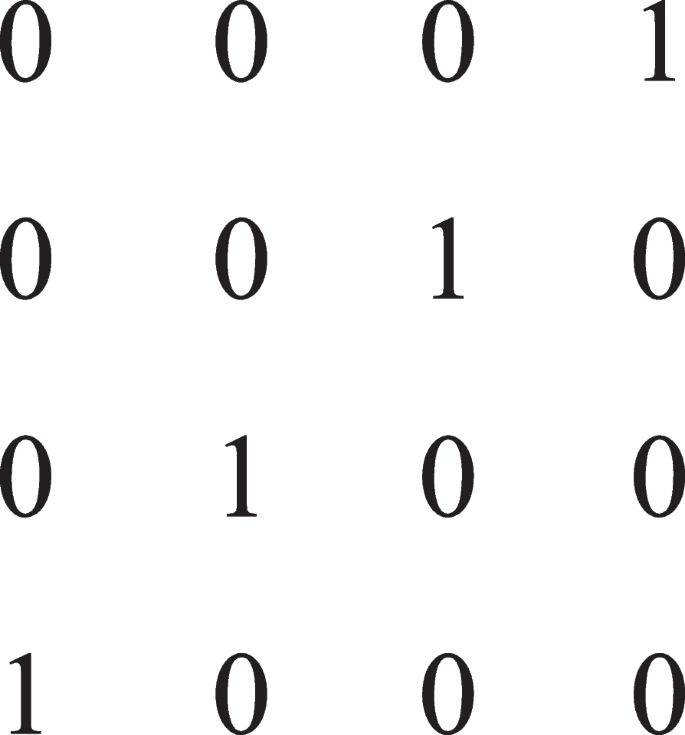

The straight line structure element is determined by its length L and angle D. The rhombic structure element is determined by length L only. The spherical element is shaped by radius R and height H together.

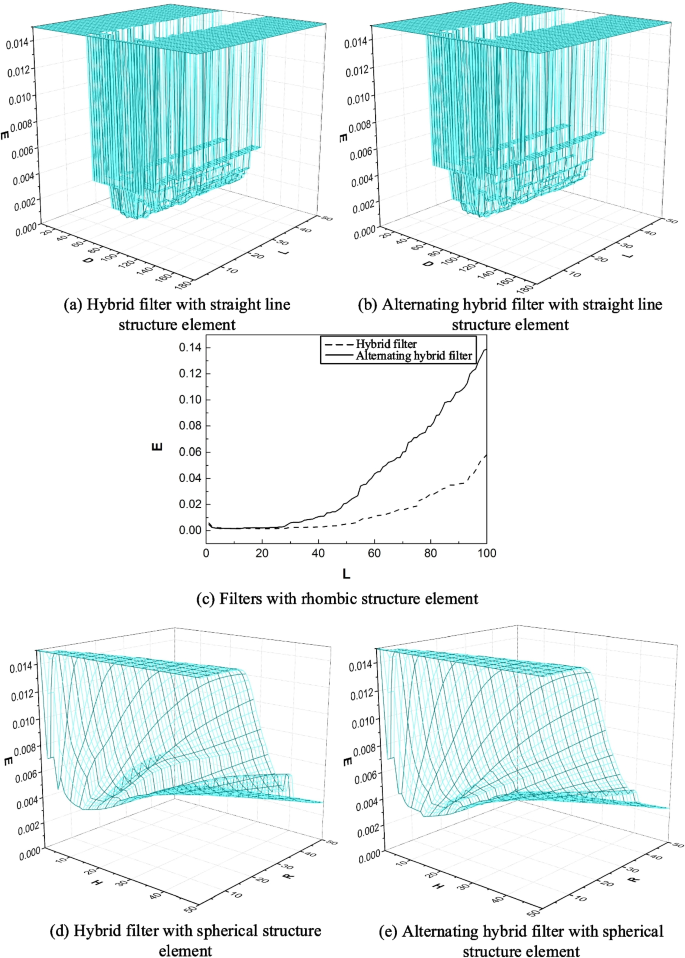

The sampling rate of the raw signal is set as 10 Hz, where the signal is interfered by the Gaussian white noise with a signaltonoise ratio of 15dB  Fig. 2. To determine the appropriate structure element shape and its parameter values, structure elements such as straight lines, rhombuses, and spheres are applied. Their denoising effects are compared with each other. The effectiveness of the filtering is evaluated by the disparity between the filtered signal and the raw signal.
Mean squared errors between the filtered signal and the raw signal are used to evaluate the denoising performance, which is expressed as
where \(si{g_0}\left( i \right)\) denotes the i^{th} value in the raw signal, \(si{g_{\text{1}}}\left( i \right)\) denotes the i^{th} value in the filtered signal. The smaller the index E, the closer denoised signal is to the raw signal, and the better the denoising effect is. Let the variation range of L and D of the straight line structure element be [1,50] and [0,180], respectively, the length of the rhombic structure element L be [1,100], and R and H of sphere structure element be [1,50] and [1,50], respectively. Various parameter combinations are generated. The values of E under each parameter combination for the three structure elements are shown in Fig. 3. The denoising effect of each type of the structure element under the optimal parameters is shown in Table 1.
The denoising effects of the straight line and rhombic structure elements are comparable. When the optimal parameters are taken, the index E decreases to 1.397 × 10^{−3} at the most, no matter whether the hybrid filter or the alternatinghybrid filter. The spherical structure element performs more effectively than the other two elements. The alternatinghybrid filter has better denoising effect, with a minimum index E of 7.6 × 10^{−4}. Thus, for random white noise, the filtering effect of spherical structure element is superior to that of straight line and rhombic ones.
3.2 Multistructure element filter design
In morphological filtering process, multistructure elements allow for nearly complete removal of noises and preserves more useful information (Li et al. 2005; Wang et al. 2005; Liu et al. 2019a, b). According to the analysis of the filtering effect of single structure elements, the spherical structure element reaches the best filtering effect with parameters of R = 42, H = 1. Extended from the optimal filtering results of the single structure element, multiple structure elements form a series filter in the order of size from small to large, carrying out filtering cyclically with different parameters. If the index E decreases after filtering, the filtered signal is used to replace the raw signal to continue the filtering process. Whilst, if E increases, the filtering is considered to be invalid. With the employment of the multistructure element filter, the indicator E declined to 6.769 × 10^{−4}, further suppressing the signal noise level.
3.3 Simulation analysis
Noises are usually removed by using lowpass filters due to their high frequency. Moreover, wavelet technology is often applied for signal denoising recently. Compared with the lowpass filtering, the wavelet processing method could preserve more detailed signals, leading to a better noise removal effect (Hera and Hou 2004). In this paper, Butterworth lowpass filters, wavelet filters and morphological filters are used respectively to filter simulated signals with different signaltonoise ratios.

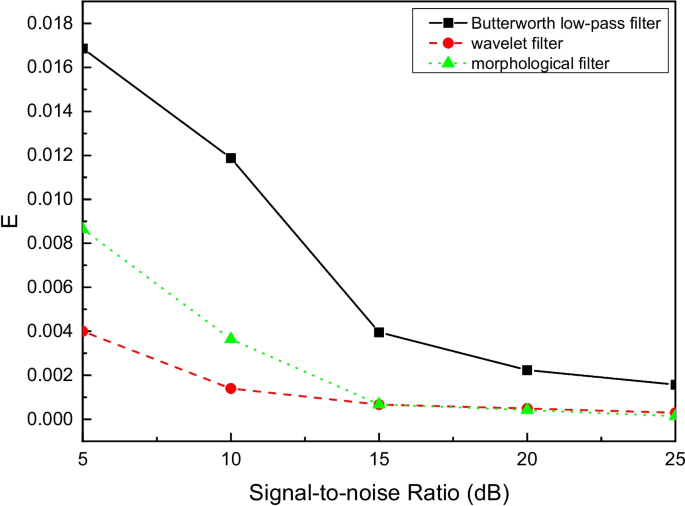

Gaussian white noises are added to the raw signal with signaltonoise ratios of 5dB, 10dB, 15dB, 20dB and 25dB, respectively. The optimal cutoff frequency is determined with the optimization goal of minimizing E. In terms of wavelet filter, the wavelet basis should be first determined. Since “dB8” small basis function is the most widely used wavelet basis (Guo and He 2020; Guo et al. 2021), it is selected in this study as the wavelet basis function for denoising. The optimal number of wavelet decomposition layers is then determined by minimizing the index E. For morphological filters, a multistructure element filter is chosen for filtering. The optimal filtering results of different filters on signals with different signaltonoise ratios are shown in Fig. 4.
The denoising performance improves as the signaltonoise ratio increases for all the three filters, i.e., Butterworth lowpass filters, wavelet filters and morphological filters. The denoising effects of the wavelet filter and morphological filter are significantly better than that of the Butterworth lowpass filter. The denoising performance of the wavelet filter is optimal when the signaltonoise ratio is in the range of 5dB to15dB. While the ratio increases to within 15dB to 25dB, the morphological filter is gradually surpassing the wavelet filter.
4 Case study
The 3rd Nanjing Yangtze River Bridge is a double plane cablestayed bridge with steel towers and steel box girders, whose main span is 648 m. The layout of the background bridge is shown in Fig. 5. The bridge was opened to traffic in October 2005. In the next year, a structural health monitoring system was devised. The system is equipped with various types of sensors, including thermal meters, anchor load cells, connected pipe systems, accelerators, etc. All the 168 stay cables are equipped with anchor load cells to measure cable forces with a sampling rate of 10 Hz. Since SA15 cable force data have high stability and reliability performance, the SA15 stay cable was selected for the filtering analysis in this study. The data were collected during the first 5 min between 8 a.m. and 9 a.m. on January 1st, 2007.
The upstream and downstream cable force data of SA15 are shown in Fig. 6. Signal details shown in A, B and C occur in the upstream and downstream rope monitoring data simultaneously. Due to the randomness of white noises, the detailed signals in A, B and C are impossible to be caused by noises. Moreover, they may be caused by overtaking vehicles near the studied stay cable. The motivation of this study is to remove the random white noise in the cable force monitoring signal. In this regard, it is required to retain the detailed information of the cable force caused by loads as much as possible.
Simulation analysis shows that the denoising performance of the wavelet and morphological filters is significantly better than that of the Butterworth lowpass filters. In this regard, the wavelet and morphological filters are compared in the case study by using field measurements. The largest difference between the field monitoring data analysis and simulation analysis is that no predictions can be made for the raw signal without noises. Therefore, the filtering effect cannot be evaluated by the index E. The main purpose of this study is the denoising of white noises that are Gaussian distributions. A new index is proposed to evaluate the denoising effect, i.e., the Gaussian fitting similarity, termed as Adj. The higher the Gaussian fitting similarity, the better the denoising effect of the filter. To maximize index Adj, the optimal parameters for the wavelet filter and morphological filter are determined. The filtered signals of the monitoring cable forces by two filters are show in Fig. 7. The detail information in the signal is mostly preserved by using the filters.
Together with Adj, the root mean square error (RMSE), signaltonoise ratio (SNR), and the correlation coefficient R between the denoised signal and the monitored signal are used to evaluate the denoising effect of the filters. RMSE quantifies the difference between the denoised signal and the original signal. Since the raw signal of the monitoring data is unknown, the signal and noise power are estimated through power spectral density (PSD) estimation. Smaller RMSE, larger SNR and R indicate a better denoising performance. Evaluation indices of the two filters are calculated respectively, as shown in Table 2.
Both the wavelet filter and the morphological filter have good denoising performance. For the cable force monitoring data in this study, the four evaluation indices of the morphological filter are marginally desirable than the wavelet filter, indicating that the morphological denoising method is slightly more effective than the wavelet method.
5 Conclusions

(1)
An index E is proposed to evaluate denoising effect by using simulation signals. Optimal parameters of straight line, rhombic and spherical structure elements in the mathematical morphological filter are discussed. For white noises in bridge monitoring data, the denoising effect of the spherical structure element is better than that of straight line and rhombic structure elements. Moreover, the multistructure element filter outperforms the single one.

(2)
The denoising effects of the wavelet filter and the mathematical morphological filter are significantly better than that of Butterworth lowpass filter through simulation analysis. The wavelet filter is dominant when signaltonoise ratio is small. With the increase of signaltonoise ratio, the performance of morphological filter is improving.

(3)
The similarity index Adj between the noise and Gaussian distribution fitting is proposed to evaluate the denoising effect for field measurements. Both filters have desirable denoising effects, and the multistructure element filtering provides an optional denoising method for processing bridge monitoring data, enriching the means of denoising.
Availability of data and materials
The data used and/or analyzed during the current study are available from the corresponding author upon reasonable request.
