A softened membrane model for single-box multi-cell composite box-girders with corrugated steel webs under pure torsion

Abstract

To analyze the nonlinear torsional behavior of single-box multi-cell prestressed concrete (PC) or reinforced concrete (RC) composite box-girders with corrugated steel webs (BGCSWs), a new theoretical model called unified softened membrane model for torsion (USMMT) is proposed in this study. It is developed from the softened membrane model for torsion which was formerly proposed for the torsional analysis of single-box single-cell PC/RC composite BGCSWs. This proposed model incorporates the different contributions of inner and outer corrugated steel webs (CSWs) in the multi-cell BGCSW to the torsional capacity by introducing a rational relationship of shear strains between inner CSWs and outer CSWs. The satisfactory accuracy of the proposed model is obtained when comparing with the experimental and the finite element analysis results, including the torque-twist curves and the smeared shear strains in concrete slabs and CSWs in the full-range torsional analysis. The comparison indicates that the proposed model is capable of predicting the overall torsional behavior of single-box multi-cell BGCSWs.

1 Introduction

The composite box-girders with corrugated steel webs (BGCSWs) have been extensively applied in bridge engineering (Zhu 2020; Corrugated Steel-Web Bridge Association 2021) since the first bridge was built in France in1986 (Cheyrezy and Combault 1990), for which they show many remarkable advantages over the concrete box-girders, such as light weight, high prestress efficiency and few web cracks (Jiang et al. 2015; He et al. 2021). Currently, this kind of steel-concrete composite structures have been used in the design of multi-cell box-girders or curved box-girders (Liu et al. 2021) for satisfying the rapid increasing of traffic demand. But on the other hand, the reduction of torsional stiffness of such structures is about 60–70% of that of the conventional concrete box-girders (Prestressed Concrete Technology Association 2005), leading to a great attention to the research of the torsional behavior of BGCSWs until now (Li 2017).

In recent years, some researchers have introduced the unified theory of concrete structures (Hsu and Mo 2010) into the nonlinear torsional analysis of BGCSWs. These theoretical models can be divided into two types according to their characteristics (Shen et al. 2018a, b): rotating angle torsional theory and fixed angle torsional theory. The typical development path of the application of unified theory of concrete structures into the nonlinear torsional analysis of BGCSWs is shown in Fig. 1.

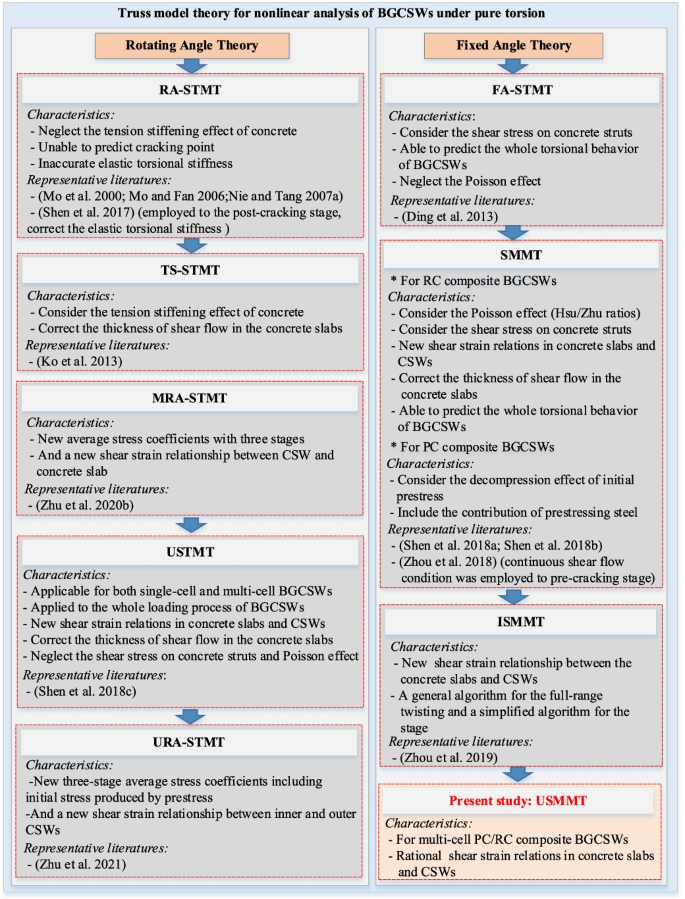

Fig. 1
figure 1

Progress of the theoretical models for nonlinear torsional analysis of BGCSWs

1.1 Review of rotating angle torsional theory for BGCSWs

In the beginning, the rotating-angle softened truss model for torsion (RA-STMT) in prestressed concrete (PC) structures (Hsu and Mo 1985) was extended to the nonlinear torsional analysis of PC composite BGCSWs (Mo et al. 2000) owing to its features of high solving efficiency and simple mechanics concept. It assumed the shear strains in CSWs to be the same as those in concrete slabs to consider the torsional contribution of CSWs. Then a step-by-step procedure was developed to make a torsional design of PC composite BGCSWs (Mo and Fan 2006). Some researchers (Nie and Tang 2007a) believed that the shear flows in CSWs and concrete slabs should be the same during the twisting of BGCSWs. The RA-STMT was also employed in the torsional analysis of BGCSWs in the post-cracking stage, combining a correction in the pre-cracking stage (Shen et al. 2017). Note that the RA-STMT is unable to predict the torsional behavior before the cracking of concrete, a tension-stiffened softened truss model for torsion (TS-STMT) was accordingly developed by considering the tension stiffening effect of concrete (Ko et al. 2013). To better predict the torsional behavior at the cracking stage and ultimate stage, the new average stress coefficients with three stages and a new shear strain relationship between CSW and concrete slab were considered in a modified rotating angle softened truss model (MRA-STMT) (Zhu et al. 2020b).

To predict the torsional behavior of single-box multi-cell BGCSWs, a unified softened truss model for torsion (USTMT) (Shen et al. 2018c) was proposed on the basis of RA-STMT by introducing the new shear strain relationships between the CSWs of multi-cell BGCSWs (Shen et al. 2018d). Subsequently, the new three-stage average stress coefficients including initial stress produced by prestress and a new shear strain relationship between inner and outer CSWs were introduced to predict the torsional behavior of multi-cell BGCSWs (Zhu et al. 2021). With the rational modifications, the new model, unified RA-STMT (URA-STMT), can better predict the torsional behavior in the pre-cracking stage.

1.2 Review of fixed angle torsional theory for BGCSWs

While the modified USTMT can well predict the overall mechanical performance of BGCSWs under torsion, such as the torque, twist, and smeared shear strain, it is incapable of explaining the contribution of shear stress on the interface of concrete cracks. Hence, the fixed angle softened truss model for torsion (FA-STMT) in reinforced concrete (RC) structures (Nie and Tang 2007b) was then extended to the torsional analysis of PC composite BGCSWs (Ding et al. 2013). Furthermore, to describe the biaxial strains which consider the Poison effect (Hsu/Zhu ratios), the fixed-angle softened membrane model for torsion (SMMT) (Jeng and Hsu 2009) was introduced to the torsional analysis of single-box single-cell PC/RC composite BGCSWs (Shen et al. 2018a, b). In the same year, different from assuming that the shear strains in the concrete slabs and CSWs before the yielding of CSWs, the continuous shear flow condition was employed to extend the SMMT to the torsional analysis of PC composite BGCSWs (Zhou et al. 2018). Then the algorithms with a new solution process were developed in the improved SMMT (ISMMT) (Zhou et al. 2019), including a general algorithm for the full-range twisting and a simplified algorithm for the stage when the girder was all in the elastic state. These research has shown that the SMMT theory can produce better accuracy in describing the real stress state of concrete in the torsional analysis of BGCSWs than those models based on rotating-angle theory.

1.3 Research motivation and innovations

From above literature review, it can be obviously found that both rotating-angle STMT theory and SMMT theory can well predict the overall mechanical performance of single-box multi-cell BGCSWs under torsion. But the rotating-angle STMT theory can neither reflect the shear stress on the interface of concrete cracks nor describe the biaxial strains in concrete slabs which considers the Poison effect (Hsu/Zhu ratios), whereas, by contrast, the SMMT theory can almost perfectly address the two problems.

The main objective of this study is to extend the SMMT in single-cell BGCSWs to the torsional analysis of multi-cell BGCSWs. A unified method (USMMT) is proposed and an algorithm is compiled to predict the torsional behavior of both single-cell and multi-cell PC/RC composite BGCSWs. A rational relationship of shear strains between inner CSWs and outer CSWs should also be introduced in the proposed model. The symbols used in the present study are defined in the notation list of Appendix 1.

2 Theoretical model for multi-cell BGCSWs under torsion

2.1 Existing equivalent method for single-box multi-cell box-girder

In previous studies (Fu and Yang 1996; Fu and Tang 2001; Allawi et al. 2017), it was generally assumed that the single-box multi-cell box girder under pure torsion could be decomposed into multiple cells with the same twist, so that torsional analysis could be performed separately. This assumption is reasonable in the elastic torsional analysis, but it will underestimate the torsional resistance of the box-girder in the nonlinear torsional analysis. For example, in a single-box triple-cell box-girder as shown in Fig. 2, the applied torque is carried by the three cells together and can be expressed as \(T={\sum}_{i=1}^32{A}_{0i}{q}_i\). However, when the areas enclosed by the centerline of the shear flow of the three cells are equal (A01 = A02 = A03), the shear flows are also equal (q1 = q2 = q3), thus giving \(T={\sum}_{i=1}^32{A}_{0i}{q}_i=2{\sum}_{i=1}^3{A}_{0i}q=2{A}_0q\). This formulas shows that the single-box triple-cell box-girder can be equivalent to a single-box single-cell box-girder with the same outer contour size.

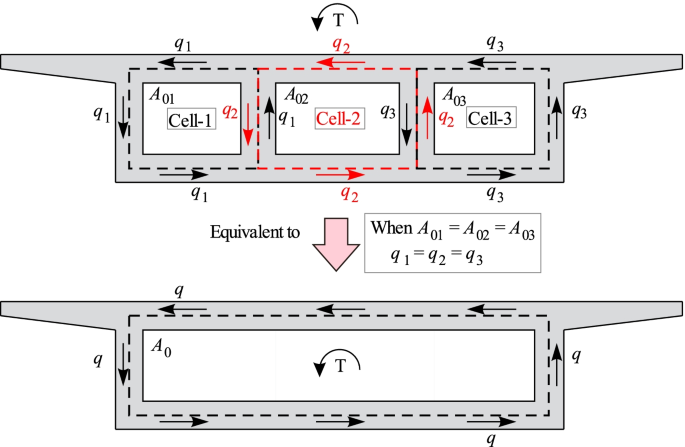

Fig. 2
figure 2

The shear flows in a single-box triple-cell box-girder

According to the analysis in previous research (Shen et al. 2018d), this simplified calculation method is reasonable for elastic torsional analysis. In the elastic phase, each cell can work together with a coordinated deformation. The shear strains in concrete slabs decrease from the middle of the cross section to both sides, and the shear strains gradually decrease from the outer CSWs to the inner CSWs. At this stage, the shear strains of the inner corrugated steel webs are small and can be ignored. However, in the non-linear stage after concrete cracking, the shear deformations of the inner webs will also increase greatly in addition to the significant changes in the shear deformation of the outer CSWs. Moreover, the shear deformations of the inner CSWs cannot be ignored in the nonlinear stage, since the outer CSWs will be destroyed first and gradually lose the bearing capacity, and then the inner CSWs will carry a greater load until the failure of the specimens occurs. Therefore, the torsional capacity of the box-girder will be underestimated if only considering the contribution of the outer CSWs to it.

2.2 Rational simplified calculation method for multi-cell BGCSWs under torsion

In the present study, the calculation method for single-box multi-cell BGCSWs under torsion is completely different from the previous simplified method for multi-cell concrete box-girders. The rectangular BGCSW with 2n (or 2n-1) cells was decomposed into n (n = 1, 2, 3, 4, 5) pieces of single-box single-cell box girders with the same torsion center as shown in Fig. 3, and then the torsional analysis on each of them were performed. Note that the shear strains in concrete slabs and CSWs in every independent single-cell box can be assumed to be equal before the yielding of CSWs according to the previous research (Mo et al. 2000). Supposing the shear strains (shear stresses) in concrete slab and CSWs of these independent single-cell boxes “Box-i” (i = 1, 2, 3, ..., n) are γlti (τlti) and γwi (τwi) respectively, the shear strain and shear stress in CSWs of “Box-i” can be obtained as (Shen et al. 2018c):

$${\gamma}_{wi}=\left\{\begin{array}{c}{R}_{\gamma i}\kern0.1em {\gamma}_{lt1},\kern14.20002em {\gamma}_{wi}<{\tau}_{wy}/{G}_e\kern0.1em \\ {}{R}_{di}\left[\left({A}_{0f1}+{A}_{0w1}\right){\theta}_1-{R}_{\gamma i}\kern0.2em {\gamma}_{lt1}{b}_1\right]/\left({h}_1-{t}_{d1}\right),\kern0.7em {\gamma}_{wi}\ge {\tau}_{wy}/{G}_e\end{array}\right.$$
(1)
$${\tau}_{wi}=\left\{\begin{array}{c}{G}_e{\gamma}_{wi},\kern1.1em {\gamma}_{wi}<{\tau}_{wy}/{G}_e\\ {}{\tau}_{wy},\kern2em {\gamma}_{wi}\ge {\tau}_{wy}/{G}_e\end{array}\right.$$
(2)

where Rγi is the ratio of the shear strain of CSWs in Box-i (γwi) to the shear train in outermost webs (γw1). It can be calculated by a fitting formula relating to Rdi (Shen et al. 2018d), the ratio of the distance between the torsional center and CSWs in Box-i, di, to that in the Box-1, d1:

$${R}_{\gamma i}=0.31215{R}_{di}+2.99556{R}_{di}^2-7.29419{R}_{di}^3+4.97228{R}_{di}^4$$
(3)
Fig. 3
figure 3

The equivalence of torsion in the BGCSW with 2n (or 2n-1) cells

It should be noted that Eq. (3) is a fitting formula for simplification, it needs more investigation to better describe the relations among the shear strain of CSWs.

For simplification, the non-uniform shear strain of concrete slab in multi-cell BGCSW is represented by the smeared shear strain of concrete in the Box-1 decomposed from multi-cell BGCSW. It needs to note that this simplification will underestimate the shear strains in concrete slabs, but it can be offset by the overestimation of shear strains in the outermost webs. Then the applied torque of multi-cell BGCSW Tm can be expressed by a unified formula:

$${T}_m={T}_{f1}+{T}_{w1}+\sum \limits_{i=2}^n{T}_{wi},\kern0.3em m=\left(2n-1\right)\kern0.4em \mathrm{or}\kern0.4em (2n)$$
(4)

where m is a subscript that represents the number of cells in the multi-cell BGCSW; Tf1 is the torque resisted by the concrete slabs in Box-1; Twi is the torque resisted by the webs in Box-i. They can be calculated by:

$${T}_{f1}=2{A}_{0f1}{\tau}_{lt1}{t}_d$$
(5)
$${T}_{wi}=2{A}_{0 wi}{\tau}_{wi}{t}_{wi}$$
(6)

2.3 USMMT for multi-cell BGCSWs under torsion

The advanced SMMT models for single-box single-cell PC/RC composite BGCSWs under torsion have been proposed by the same authors (Shen et al. 2018a, b). Combining the above calculation formula, the USMMT for torsional analysis of single-box multi-cell PC/RC composite BGCSWs can be obtained, and the solution process is shown as Fig. 4. The relevant equations which have been deduced in the authors’ previous researches (Shen et al. 2018a, b) are listed in Appendix 2 to reduce the length of the main text. From the equations listed in the analysis process of the USMMT for the single-box multi-cell PC composite BGCSWs, it can be seen that there are a total of 32 unknown parameters. (ε2, ε1, γ21, εl, εt, γlt, (v12)torsion, \({\overline{\varepsilon}}_1\), \({\overline{\varepsilon}}_2\), \({\overline{\varepsilon}}_l\), \({\overline{\varepsilon}}_t\), \({\overline{\varepsilon}}_{2s}\), \({\overline{\varepsilon}}_{1s}\), td, A0f, p0f, kc, β, ζ, \({\sigma}_2^c\), \({\sigma}_1^c\), \({\tau}_{21}^c\), \({f}_s^c\), fps, θ1, τlt1, Tf1, Rγi, γwi, τwi, Twi, Tm), 31 effective Eqs. ((1) ~ (6), (9) ~ (40)). In order to solve these unknown parameters, a series of values of ε2 should be first selected, and then the remaining 31 unknown parameters can be solved with 31 effective equations using the trial and error method. For the non-prestressed single-box multi-cell RC composite BGCSWs, the prestress values just need to be set as zero in this algorithm, which means no prestress is applied. The specific solution process is as follows:

  1. (1)

    Enter the given parameters, including the cell number of single-box multi-cell BGCSW (m = 2n) or (2n-1), i = 1, 2, 3, …, n), geometric parameters (b1, h1,,Rdi, Al, At, Ac, Aps, s, th, tw, aw, bw, cw), material parameters (fc′, ε0, Es, Ec, Gs, Eps, Eps, fty, fly, τwy, fpu, fpi).

  2. (2)

    Select the initial value of ε2, which can be varied from 0 to –0.0018 monotonically by an increment of − 0.0000001.

  3. (3)

    Analyze the torsional behavior of the concrete slabs and CSWs in Box-1.

    • Step 1. Assume γ21.

    • Step 2. Assume ε1.

    • Step 3. Calculate εl, εt, γlt, (v12)torsion according to Eqs. (10) ~ (13).

    • Step 4. Calculate \({\overline{\varepsilon}}_1\), \({\overline{\varepsilon}}_2\), \({\overline{\varepsilon}}_l\), \({\overline{\varepsilon}}_t\), \({\overline{\varepsilon}}_{2s}\), \({\overline{\varepsilon}}_{1s}\) according to Eqs. (14) ~ (19).

    • Step 5. Calculate td, A0f, p0f, β according to Eqs. (20), (22), (23), (29).

    • Step 6. Determine whether the BGCSW is prestressed. If yes, proceed directly to the next step; if not, skip to step 10.

    • Step 7. Calculate ζ, \({\sigma}_2^c\), \({\sigma}_1^c\), \({\tau}_{21}^c\), \({f}_s^c\), fps according to Eqs. (24), (26), (27), (30), (32), (34), (35).

    • Step 8. Determine whether the convergence criteria (37) is satisfied. If yes, proceed directly to the next step, if not, return to step 2.

    • Step 9. Determine whether the convergence criteria (38) is satisfied. If yes, skip to step 13, if not, return to step 1.

    • Step 10. Calculate ζ, kc, kt,\({\sigma}_2^c\), \({\sigma}_1^c\), \({\tau}_{21}^c\), fs according to Eqs. (25), (26), (28), (31), (33), (36).

    • Step 11. Determine whether the convergence criteria (37) is satisfied, if yes, proceed directly to the next calculation, if not, return to step 2;

    • Step 12. Determine whether the convergence criteria (37) is satisfied, if yes, skip to step 13, if not, return to step 1;

    • Step 13. Calculate θ1 according to Eq. (21);

    • Step 14. Calculate τlt1, Tf1, γw1, τw1, Tw1 according to Eqs. (1), (2), (5), (6), (9).

  4. (4)

    Analyze the torsional mechanical behavior of the corrugated steel web in the range of 2 ≤ i ≤ n.

    • Step 15. Let i = 2;

    • Step 16. Calculate Rγi, γwi, τwi, Twi according to Eqs. (1), (2), (5), (6), (9);

    • Step 17. Determine whether i > n is satisfied. If yes, proceed directly to the next step, if not, set i = i + 1, and return to step 16.

  5. (5)

    Calculate the total torque Tm according to Eq. (4).

  6. (6)

    Determine whether it meets |ε2| > 0.0018. If yes, output the required data and stop the calculation. If not, return to section (2) and select the next value of ε2.

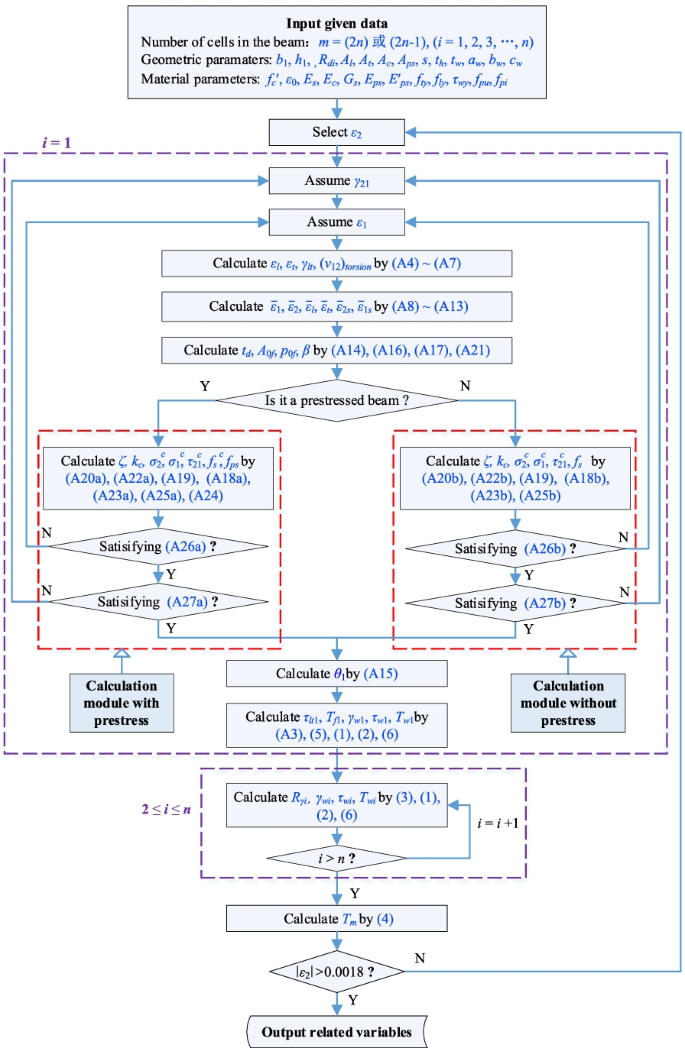

Fig. 4
figure 4

Flow chart of solution procedure for the USMMT in single-box multi-cell BGCSWs

Using above method, the required parameters can be obtained through continuous iterative calculations in an algorithm. Obviously, the USMMT can not only predict the torsional behavior of a single-box multi-cell BGCSW, but also the torsional behavior of a single-box single-cell BGCSW. What’s more, it can also both predict the torsional behavior of the PC/RC composite BGCSWs. In the calculation module with prestress, the effect of initial strains and stresses on the constitutive laws of concrete is considered.

3 Model verification with experimental results

3.1 Experimental specimens

In order to validate the proposed unified model, the experimental data of six pieces of single-box multi-cell BGCSWs available from literatures are collected. These specimens were tested under pure torsion, including two single-box double-cell BGCSWs named T-2C (Shen et al. 2018d) and T-2C-S (Shen et al. 2018a), two single-box triple-cell BGCSWs named T-3C (Shen et al. 2018d) and S-3 (Zhu et al. 2020c), two single-box five-cell BGCSWs named S-5 and SU-5 (Zhu et al. 2020c).

Moreover, to better understand the torsional behavior of single-box multi-cell BGCSWs, a specimen named T-3C-S was also tested by the authors after the torsion experiment of specimen T-3C. The test situation of T-3C-S, including the physical parameters and the experimental procedure, is almost the same to that of T-3C except the different yield tensile stress of CSW, thus the relevant information of this specimen will not be repeated in this study.

The geometric and material parameters of all specimens are shown in Table 1. It should be pointed out that the number of tests used to verify the USMMT in this study is relatively small and more torsional test of the specimens with more cells and larger sizes are still needed.

Table 1 Geometric and material parameters of the specimens

3.2 Torque-twist curves

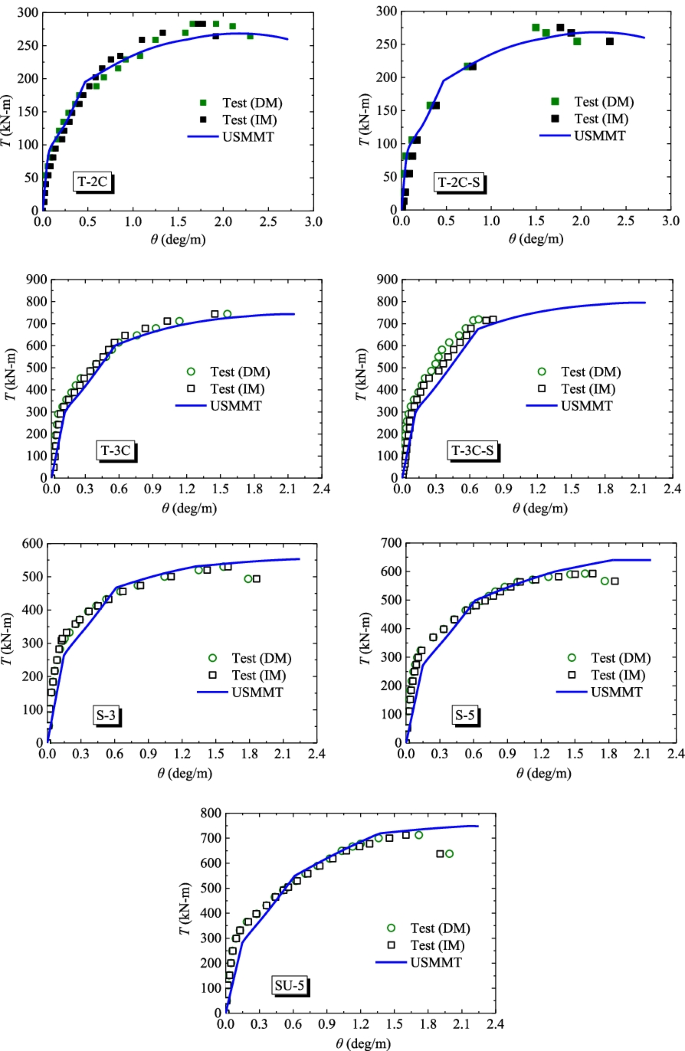

Figure 5 shows the comparisons of the torque-twist curves of all test beams under pure torsion between the experimental results and the calculated results from the USMMT. In these tests, the twists were measured by several displacement meters (DMs) and inclinometers (IMs) respectively. It can be seen that the torque-twist curves calculated by the USMMT are in good agreement with the test results on the overall trend. Furthermore, the calculated and tested values of the torques and twists at the characteristic points of concrete cracking, CSW yielding and ultimate stage of all test beams are listed in Tables 2 and 3. It can be seen that the predicted values of torques and twists at the characteristic points fit the test results well except for the large difference in the values of twists at some characteristic points. Therefore, the comparison shows that the proposed model in this study can accurately predict the test results of single-box multi-cell PC/RC composite BGCSWs before the ultimate torque is reached.

Fig. 5
figure 5

Comparison of torque-twist curves obtained from tests, and USMMT

Table 2 Prediction accuracy of the USMMT on torques at the characteristic points
Table 3 Prediction accuracy of the USMMT on twists at the characteristic points

As shown in Tables 2 and 3, the proposed model has a better prediction on the torques than that on the twists. This is due to the fact that the torques are accurately calculated by Eqs. (5) and (6), however, the twists are roughly calculated by Eq. (21) for analogy to thin-walled circular rod.

3.3 Shear strains in concrete slabs and CSWs

Figures 6 and 7 respectively show the comparisons of the shear strains in concrete slabs and CSWs of the test beam under pure torsion between the experimental results and the calculated results from the USMMT. It should be noted that the shear strains calculated by the USMMT are the average shear strains in concrete slabs and CSWs, whereas the shear strains measured from the test are the shear strains at each measuring point. The shear strains in this study are taken as the absolute values, regardless of the positive and negative values.

Fig. 6
figure 6

Comparisons of the shear strains in concrete slabs of the specimens under pure torsion between the experimental results and the calculated results from the USMMT

Fig. 7
figure 7

Comparisons of the shear strains in concrete slabs and CSWs of the specimens under pure torsion between the experimental results and the calculated results from the USMMT

In Fig. 6, it can be seen that the calculated results from the USMMT agree well with the test results before the cracking of concrete. Furthermore, the calculated results from the USMMT are basically consistent with the test results after the cracking of concrete in the overall trend, and the predicted values of average shear strains lie between the minimum and maximum tested concrete shear strains at the measuring points.

In Fig. 7, it can be seen that the shear strains of the CSWs are small before the yielding of CSWs, which is similar to the shear strains in concrete slabs. The difference is small between the shear strains measured in the test and the average shear strains in CSWs obtained from Eq. (1). Since the average shear strains in CSWs are assumed to be equal to the average shear strains in concrete slabs in Eq. (1), the curves between the torques and average shear strains in CSWs calculated by the USMMT, however, are broken lines before the yielding of CSWs, which is different from the test results. After the yielding of CSWs, the second assumption in Eq. (1) will cause the average shear strains in CSWs to have a large abrupt change, which is also different from the test results. Therefore, the assumptions in Eq. (1) still needs to be optimized, but its accuracy needs to be improved though the average shear strains in CSWs obtained from Eq. (1) can roughly reflect the change rules of the average shear strains in CSWs measured in the test. Moreover, the acceptable agreements between the measured shear strains in inner/outer CSWs and the predicted ones demonstrate that the shear strains relationship between the inner CSWs and outer CSWs in Eq. (3) is reasonable.

To sum up, it is reasonable to use the two assumptions in Eq. (1) of the USMMT to express the shear strain relationships between the CSWs and concrete slabs. It can roughly reflect the change rules of average shear strains in concrete slabs and CSWs.

4 Model verification with FEA results

In the previous research (Shen et al. 2018d), a finite element model of the specimen T-3C was established, and its accuracy was verified by test results. Based on the finite element model, the effect of the lateral position distribution of the CSWs and the number of cells on the torsional bearing capacity of the BGCSWs was explored by a parameter analysis. In order to verify the accuracy and applicability of the proposed USMMT, this section will perform a corresponding parameter analysis and compare the calculated results from USMMT with the FEA results.

Table 4 shows the comparisons of ultimate torques of the single-box multi-cell BGCSWs between the calculated results from the USMMT and the FEA results listed in the literature (Shen et al. 2018d). Furthermore, the ultimate torques from the calculated results of the USMMT and the FEA results are shown in Fig. 8 to display the results more vividly. It can be seen from Table 4 and Fig. 8 that the difference between the predicted values of ultimate torques from USMMT and the ones from FEA is within the allowable range of 10% in engineering for the most of BGCSWs. The mean value of the ratios between the predicted values from USMMT and the ones from FEA in all BGCSWs is 1.029 with the standard deviation of 0.076. Therefore, the unified SMMT model in this study can accurately predict the torsional bearing capacity of the BGCSWs with no more than 10 cells.

Table 4 Prediction accuracy of the USMMT on ultimate torques of various multi-cell BGCSWs
Fig. 8
figure 8

Comparisons of the ultimate torques between the FEA results and the calculated results from the USMMT

Further, the comparisons of the torque-twist curves of BGCSWs among the calculated results from the USMMT, the FEA results and the experimental results are shown in Fig. 9. These BGCSWs have an odd number of cells and an arrangement of CSWs at equal intervals in the transverse direction. It can be seen that the results of the torque-twist curves of the single-box multi-cell BGCSWs predicted by the USMMT are in good agreement with the ones from the FEA results and the test results. In addition, the calculated results from the USMMT show that the torque-twist curve of each single-box multi-cell BGCSWs has little difference in the elastic stage before the cracking of concrete, and the difference of torques at the cracking of concrete is also very small. However, the total torques increase significantly when the number of cells in the box-girders increases after the cracking of concrete. This shows that the inner CSWs have little effect on the total torque before the cracking of concrete, whereas they have a significant influence on the total torque after the cracking of concrete. This change rule is basically consistent with the change rule obtained from the FEA. Therefore, the treatment of the inner CSWs by the USMMT model in this study is reasonable. Equation (4) can basically reflect the torsional contribution of the inner CSWs to the total torque of multi-cell BGCSWs.

Fig. 9
figure 9

Comparisons of torque-twist curves between the FEA results and the calculated results from the USMMT

From above analysis, it can be seen that the proposed model is rational and can be used to predict the overall mechanical properties of the single-box multi-cell PC/RC composite BGCSWs under the action of applied torque, such as the torques, twists, shear strains and so on.

5 Conclusions

In this study, the analytical model SMMT, formerly developed for the single-box single-cell PC/RC composite BGCSWs under pure torsion, is extended to the torsional analysis of single-box multi-cell PC/ RC composite BGCSWs by incorporating the different contributions of the inner and outer CSWs. The proposed model, USMMT for single-box multi-cell PC/RC composite BGCSWs, is verified by the experimental results and the FEA results. The main conclusions can be drawn from the results as follows:

  1. (1)

    The predicted results from the USMMT agree well with the experimental results and FEA results available in the literature, indicating that the proposed model is able to predict the full-range torsional behavior of single-box multi-cell BGCSWs, such as the torque-twist curves and the torques at the characteristic points.

  2. (2)

    The proposed model is a unified model that is suitable for both PC and RC composite BGCSWs. It considers the effect of the initial stresses and strains on the constitutive laws of concrete in the calculation module with prestress. As a unified model, it also can predict the torsional behavior of single-cell BGCSWs.

  3. (3)

    The average shear strains in concrete slabs and CSWs calculated by the USMMT reflect the change rules of shear strains from the test, which validates the reasonability of assumption on the shear strain relations between concrete slabs and CSWs, as well as the applicability of shear strains relationship formula between inner CSWs and outer CSWs.

It should be admitted that the proposed model is verified by a small number of test specimens and finite element models of the multi-cell BGCSWs with no more than 10 cells, it should be validated by more tests. The shear strain relation between concrete slabs and CSWs and the one between inner CSWs and outer CSWs are still need to be optimized and improved in the future work. This work mainly focuses on a softened membrane model using unified theory, it is suggested by the authors to propose simplified explicit equations in the future to predict the torque and twist for single-box multi-cell composite BGCSWs under pure torsion for practical design.

Availability of data and materials

The data and materials in current study are available from the corresponding author on reasonable request.

Abbreviations

PC:

Prestressed concrete

RC:

Reinforced concrete

FE:

Finite element

FEA:

Finite element analysis

BGCSWs:

Box-girders with corrugated steel webs

USMMT:

Unified softened membrane model for torsion

CSWs:

Corrugated steel webs

RA-STMT:

Rotating-angle softened truss model for torsion

TS-STMT:

Tension-stiffened softened truss model for torsion

MRA-STMT:

Modified rotating angle softened truss model

USTMT:

Unified softened truss model for torsion

URA-STMT:

Unified rotating-angle softened truss model for torsion

FA-STMT:

Fixed angle softened truss model for torsion

SMMT:

Softened membrane model for torsion

ISMMT:

Improved softened membrane model for torsion

DM:

Displacement meters

IM:

Inclinometers

References

Download references

Acknowledgements

The authors would like to thank Pro. Y.L. Mo and Pro. T.T.C. Hsu for their guidance regarding the SMMT theory. All their supports are greatly appreciated.

Funding

This study is supported by the National Natural Science Foundation of China (No. 52008095).

Author information

Authors and Affiliations

Authors

Contributions

Kongjian Shen: Developing the USMMT theory and corresponding algorithm; performing FEA and parametric study, comparative analysis, writing original draft. Shui Wan: Providing guidance in methodology development, financial supports. Yingbo Zhu: Providing the experimental data and substantially revising the draft. Debao Lyu: Revising and editing the draft. Zhiqiang Wu: Revising and editing the draft. The authors read and approved the final manuscript.

Corresponding author

Correspondence to Kongjian Shen.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Appendices

Appendix 1

T

applied torque of the BGCSW

Tf, Tw

torques contributed by concrete slabs and CSWs, respectively

θ

twist of the BGCSW (angle per unit length), the twist of the box-girder is assumed to be represented by the twist of concrete slabs

b

center distance between CSWs

h

distance between the outer surfaces of upper and lower concrete slabs

th, tw

thickness of concrete slabs and CSWs, respectively

t d

thickness of shear flow zone in concrete slabs, named effective thickness

d i

the distance between the torsional center and CSWs in Box-i

q,qi

shear flows in the single-cell and i-th cell box-girder, respectively

A0, A0i

areas enclosed by the centerline of shear flow, q and qi respectively

A0f, A0w

areas enclosed by the centerline of shear flow in concrete slabs and CSWs, respectively. For rectangular BGCSWs, A0f = A0w = b(h-td)/2

p 0f

perimeter of the centerline of shear flow, for rectangular BGCSWs, p0f = 2b

aw, bw, cw

lengths of the flat plate, the projection of inclined plate and the inclined plate, respectively, in one half of wavelength of CSW, lw

A c

area of reinforced concrete section, Ac = 2thb

A l

total cross-section area of longitudinal (l-) steel bars

A t

cross-section area of one transverse (t-) steel bar

A ps

total cross-section area of prestressed tendons

s

spacing of steel bars in the t-direction

ρ s

ratios of steel bars in the l- and t- directions respectively, ρs can be ρl or ρt, ρl = Al/(p0ftd), ρt = At/(tds)

ρli, ρpi

ratios of steel bars and prestressed steel in the l- direction with respect to the net area of concrete, respectively, ρli = Al/(Ac − Al − Aps), ρpi = Aps/(Ac − Al − Aps)

ρ ps

ratio of prestressed tendons in the l- direction, ρps = Aps/(p0ftd)

η w

parameter of corrugation, ηw = (aw + bw)/(aw + cw)

μ

Poisson’ ratio of steel

β

deviation angle

ζ

softened coefficient of concrete in compression

Ec, Es, Eps

Young’s modulus of concrete, steel bar and prestressing steel, respectively

\({E}_c^{\prime }\), \({E}_c^{{\prime\prime} }\)

tensile modulus of concrete before and after the decompression of concrete, respectively

E′ ps

initial tangent modulus of Ramberg-Osgood curve

G s

shear modulus of steel plate, Gs = Es(1 + μ)

G e

effective shear modulus of CSW, Ge = Gsηw

fc

cylinder compressive strength of concrete

f wy

yield tensile stress of CSW

f s

smeared (average) stresses of steel bars induced only by torsion in the l- and t- directions, respectively, fs can be fl or ft

f li

initial stress of longitudinal steel bars

\({f}_s^c\)

smeared (average) stresses of steel bars induced by torsion and prestressing in the l- and t- directions, respectively, \({f}_s^c\) can be \({f}_l^c\) or \({f}_t^c\)

f sy

smeared (average) yield stresses of steel bars in l- and t- directions, respectively, fsy can be fly or fty

f ps

smeared (average) stress of prestressed tendon

f pi

initial stress of longitudinal prestressed tendon

f pu

ultimate strength of prestressing steel

\({\sigma}_1^c,\kern0.4em {\sigma}_2^c\)

smeared (average) normal stresses in the 1- and 2-directions, respectively, considering the effect of strain gradient

σ ci

initial compressive stress of concrete caused by prestressing, \({\sigma}_{ci}={E}_c{\overline{\varepsilon}}_{li}\)

\({\tau}_{21}^c\)

smeared (average) shear stress of concrete in 2-1coordinate

τlt, τw

smeared (average) shear stress in concrete slabs and CSWs, respectively

τ wy

yield shear stress of CSW, \({\tau}_{wy}={f}_{wy}/\sqrt{3}\)

εcr, fcr

cracking tensile strain of concrete and its corresponding tensile stress

ε 0

compressive strain at peak concrete strength fc′, taken as − 0.002

εl, εt

smeared (average) biaxial strains in the l- and t- directions, respectively

ε sy

smeared (average) biaxial yield strains of steel bars in the l- and t- directions, respectively, εsy can be εly or εty

ε sf

smeared (average) biaxial strain of steel bars which yield first, εsf can be εl or εt

\({\overline{\varepsilon}}_{sn}\)

smeared (average) uniaxial yield strain of the steel bars which yield first, \({\overline{\varepsilon}}_{sn}\) can be \({\overline{\varepsilon}}_{ln}\) or \({\overline{\varepsilon}}_{tn}\), \({\overline{\varepsilon}}_{sn}=\left(0.93-2{B}_s\right){\varepsilon}_{sy}\kern0.1em\)

\({\overline{\varepsilon}}_s\)

smeared (average) uniaxial strain induced only by torsion in the l- and t-directions, respectively, \({\overline{\varepsilon}}_s\) can be \({\overline{\varepsilon}}_l\) or \(\kern0.2em {\overline{\varepsilon}}_t\)

\({\overline{\varepsilon}}_s^c\)

smeared (average) uniaxial strain induced by torsion and prestressing in the l- and t-direction, respectively, \({\overline{\varepsilon}}_s^c\) can be \({\overline{\varepsilon}}_l^c\) or \({\overline{\varepsilon}}_t^c\)

ε2, ε1

smeared (average) biaxial strains in the 2- and 1- directions, respectively

\({\overline{\varepsilon}}_{1s},{\overline{\varepsilon}}_{2s}\)

maximum uniaxial strains in the 1- and 2-directions, respectively

\(\kern0.1em {\overline{\varepsilon}}_{2s}^c\)

maximum uniaxial strains in the 2-direction induced by torsion and prestressing

\({\overline{\varepsilon}}_1,{\overline{\varepsilon}}_2\)

smeared (average) uniaxial strain in the 1- and 2-directions, respectively

\({\overline{\varepsilon}}_1^c\)

smeared (average) uniaxial strain in the 1-direction induced by torsion and prestressing

\({\overline{\varepsilon}}_{ps}\)

uniaxial strain of prestressing steel

\({\overline{\varepsilon}}_{pi}\)

initial strain of prestressing steel after loss, \({\overline{\varepsilon}}_{pi}={f}_{pi}/{E}_{ps}\)

\({\overline{\varepsilon}}_{li}\)

initial strain of steel bars in the l-direction, \(\kern0.1em {\overline{\varepsilon}}_{li}=-{A}_{ps}{f}_{pi}/\left[{A}_l{E}_s+\left({A}_c-{A}_l-{A}_{ps}\right){E}_c\right]\)

\({\overline{\varepsilon}}_{2i},\kern0.3em {\overline{\varepsilon}}_{1i}\)

initial uniaxial strain in the 2–1 coordinate

\({\overline{\varepsilon}}_{cx}\)

extra strain at the end of decompression of concrete

γ w

smeared (average) shear strain of CSW

γ lt

smeared (average) shear strain of concrete in the l-t coordinate

γ 21

smeared (average) shear strain of concrete in the 2–1 coordinate

B s

parameter defined in the constitutive law of mild steel embedded in concrete, Bs can be Bl or Bt,   Bs = (1/ρs)  (fcr/fsy)1.5

(v12)torsion

Hsu/Zhu ratio used in the SMMT for torsion

k c

ratio of the average compressive stress to the peak compressive stress

k t

ratio of the average tensile stress to the peak tensile stress

R di

ratio of the distance between the torsional center and CSWs in Box-i, di, to that in the Box-1, d1

R γi

ratio of the shear strain of CSWs in Box-i, γwi, to the shear train in outermost webs, γw1

Appendix 2

The following equations can be found in the literature (Shen et al. 2018a, b).

  1. (1)

    In-plane equilibriums in the l- and t- directions as shown in Fig. 10:

Fig. 10
figure 10

Force decomposition of PC composite BGCSW under pure torsion

$$\frac{1}{2}\left({\sigma}_2^c+{\sigma}_1^c\right)+{\tau}_{21}^c+{\rho}_l{f}_l=0$$
(7)
$$\frac{1}{2}\left({\sigma}_2^c+{\sigma}_1^c\right)-{\tau}_{21}^c+{\rho}_t{f}_t=0$$
(8)
$${\tau}_{lt}=\frac{1}{2}\left(-{\sigma}_2^c+{\sigma}_1^c\right)$$
(9)
  1. (2)

    Compatibility equations for concrete slabs:

$${\varepsilon}_l=\frac{1}{2}\left({\varepsilon}_2+{\varepsilon}_1+{\gamma}_{21}\right)$$
(10)
$${\varepsilon}_t=\frac{1}{2}\left({\varepsilon}_2+{\varepsilon}_1-{\gamma}_{21}\right)\kern0.1em$$
(11)
$${\gamma}_{lt}=\left(-{\varepsilon}_2+{\varepsilon}_1\right)\kern0.1em$$
(12)
$${\left({\nu}_{12}\right)}_{torsion}=\left\{\begin{array}{c}0.16+680{\varepsilon}_{sf},\kern0.9000001em {\varepsilon}_{sf}\le 0.002\\ {}1.52,\kern4.999998em {\varepsilon}_{sf}>0.002\end{array}\right.$$
(13)
$${\overline{\varepsilon}}_1={\varepsilon}_1+{\varepsilon}_2{\left({v}_{12}\right)}_{torsion}$$
(14)
$${\overline{\varepsilon}}_2={\varepsilon}_2$$
(15)
$${\overline{\varepsilon}}_{2s}=2{\overline{\varepsilon}}_2$$
(16)
$${\overline{\varepsilon}}_{1s}=2{\overline{\varepsilon}}_1$$
(17)
$${\overline{\varepsilon}}_l=\frac{1}{2}\left({\overline{\varepsilon}}_2+{\overline{\varepsilon}}_1+{\gamma}_{21}\right)\kern0.2em$$
(18)
$${\overline{\varepsilon}}_t=\frac{1}{2}\left({\overline{\varepsilon}}_2+{\overline{\varepsilon}}_1-{\gamma}_{21}\right)\kern0.1em$$
(19)
  1. (3)

    Effective thickness of the concrete slabs td:

$${t}_d=\left\{\begin{array}{c} hQ/\left(Q+4\right),\kern1.8em {t}_{d, solid}\le {t}_h\\ {}{t}_h,\kern6.499996em {t}_{d, solid}>{t}_h\end{array}\right.$$
(20)

where \(Q=-2{\overline{\varepsilon}}_{2s}/{\gamma}_{lt}\)

  1. (4)

    Relationship between the twist and shear strain in concrete

$$\theta =\frac{p_{0f}}{2{A}_{0f}}{\gamma}_{lt}$$
(21)
$${A}_{0f}=\frac{1}{2}b\left(h-{t}_d\right)\kern0.1em$$
(22)
$${p}_{0f}=2b\kern0.1em$$
(23)
  1. (5)

    Constitutive laws of the concrete in tension:

For prestressed concrete,

$$\kern0.1em {\sigma}_1^c=\left\{\begin{array}{c}\frac{1}{2}\left({E}_c^{\prime }{\overline{\varepsilon}}_{1s}+{\sigma}_{ci}\right),\kern24.30006em {\overline{\varepsilon}}_{1s}^c\le {\overline{\varepsilon}}_{cx}\kern0.1em \\ {}\frac{1}{4}{\sigma}_{ci}\frac{\left({\overline{\varepsilon}}_{cx}-{\overline{\varepsilon}}_{1i}\right)}{{\overline{\varepsilon}}_{1s}}+\frac{1}{2}{E}_c^{{\prime\prime}}\frac{{\left({\overline{\varepsilon}}_{1s}+{\overline{\varepsilon}}_{1i}-{\overline{\varepsilon}}_{cx}\right)}^2}{{\overline{\varepsilon}}_{1s}},\kern12.60001em {\overline{\varepsilon}}_{cx}<{\overline{\varepsilon}}_{1s}^c\le {\varepsilon}_{cr}\\ {}\frac{1}{4}{\sigma}_{ci}\frac{{\overline{\varepsilon}}_{cx}-{\overline{\varepsilon}}_{1i}}{{\overline{\varepsilon}}_{1s}}+\frac{f_{cr}}{2}\frac{\varepsilon_{cr}-{\overline{\varepsilon}}_{cx}}{{\overline{\varepsilon}}_{1s}}+\frac{f_{cr}}{0.6}\frac{{\left({\varepsilon}_{cr}\right)}^{0.4}}{{\overline{\varepsilon}}_{1s}}\left[{\left({\overline{\varepsilon}}_{1s}+{\overline{\varepsilon}}_{1i}\right)}^{0.6}-{\left({\varepsilon}_{cr}\right)}^{0.6}\right],\kern3.399999em {\overline{\varepsilon}}_{1s}^c>{\varepsilon}_{cr}\end{array}\right.$$
(24)

where \({\overline{\varepsilon}}_{cx}={\overline{\varepsilon}}_{1i}-{\sigma}_{ci}/2{E}_c^{\prime }\), \({E}_c^{\prime }=2{f}_c^{\prime }/{\varepsilon}_0\), \({E}_c^{{\prime\prime} }={f}_{cr}/\left({\varepsilon}_{cr}-{\overline{\varepsilon}}_{cx}\right)\).

For reinforced concrete,

$${\sigma}_1^c=\left\{\begin{array}{c}\frac{E_c{\overline{\varepsilon}}_{1s}}{2},\kern13.90002em {\overline{\varepsilon}}_{1s}/{\varepsilon}_{cr}\le 1\\ {}\frac{E_c{\overline{\varepsilon}}_{1s}}{2}+\frac{E_c{\left({\varepsilon}_{cr}\right)}^{1.4}}{0.6{\overline{\varepsilon}}_{1s}}\left[{\left({\overline{\varepsilon}}_{1s}\right)}^{0.6}-{\left({\varepsilon}_{cr}\right)}^{0.6}\right],\kern1.6em {\overline{\varepsilon}}_{1s}/{\varepsilon}_{cr}>1\end{array}\right.$$
(25)
  1. (6)

    Constitutive laws of the concrete in compression:

$${\sigma}_2^c=-{k}_c\zeta {f}_c^{\prime }$$
(26)

For prestressed concrete,

$$\zeta =\left\{\begin{array}{c}1,\kern13.30001em {\overline{\varepsilon}}_1^c\le 0\\ {}\frac{5.8}{\sqrt{f_c^{\prime }}}\frac{1}{\sqrt{1+400{\overline{\varepsilon}}_1}}\left(1-\frac{\left|\beta \right|}{24{}^{\circ}}\right)\le 0.9,\kern0.6em {\overline{\varepsilon}}_1^c>0\kern0.2em \end{array}\right.$$
(27)

For reinforced concrete,

$$\zeta =\frac{5.8}{\sqrt{f_c^{\prime }}}\frac{1}{\sqrt{1+400{\overline{\varepsilon}}_1}}\left(1-\frac{\left|\beta \right|}{24{}^{\circ}}\right)\le 0.9\kern0.4em \mathrm{and}\kern0.4em \frac{5.8}{\sqrt{f_c^{\prime }}}\le 0.9$$
(28)
$$\beta \left(\deg \right)=\frac{1}{2}{\tan}^{-1}\left(\frac{\gamma_{21}}{\varepsilon_2-{\varepsilon}_1}\right)\frac{180}{\pi}\kern0.1em$$
(29)

For prestressed concrete,

$${k}_c=\left\{\begin{array}{c}\frac{{\overline{\varepsilon}}_{2s}^c+{\overline{\varepsilon}}_{2i}}{{\zeta \varepsilon}_0}\left[1-\frac{1}{3}\frac{{\overline{\varepsilon}}_{2s}^c+{\overline{\varepsilon}}_{2i}}{{\zeta \varepsilon}_0}+\frac{1}{3}\frac{{\overline{\varepsilon}}_{2s}^c{\overline{\varepsilon}}_{2i}}{{\zeta \varepsilon}_0\left({\overline{\varepsilon}}_{2s}^c+{\overline{\varepsilon}}_{2i}\right)}\right],\kern9.900002em {\overline{\varepsilon}}_{2s}^c/\left({\zeta \varepsilon}_0\right)\le 1\\ {}\frac{{\overline{\varepsilon}}_{2s}^c}{{\overline{\varepsilon}}_{2s}^c-{\overline{\varepsilon}}_{2i}}\left\{\begin{array}{l}\left[1-\frac{\zeta^2}{{\left(2-\zeta \right)}^2}\right]\left(1-\frac{1}{3}\frac{{\zeta \varepsilon}_0}{{\overline{\varepsilon}}_{2s}^c}\right)+\frac{\zeta^2}{{\left(2-\zeta \right)}^2}\frac{{\overline{\varepsilon}}_{2s}^c}{{\zeta \varepsilon}_0}\left(1-\frac{1}{3}\frac{{\overline{\varepsilon}}_{2s}^c}{{\zeta \varepsilon}_0}\right)\\ {}-\frac{{{\overline{\varepsilon}}_{2i}}^2}{{\zeta \varepsilon}_0{\overline{\varepsilon}}_{2s}^c}+\frac{{{\overline{\varepsilon}}_{2i}}^3}{3{\left({\zeta \varepsilon}_0\right)}^2{\overline{\varepsilon}}_{2s}^c}\end{array}\right\},\kern1.4em {\overline{\varepsilon}}_{2s}^c/\left({\zeta \varepsilon}_0\right)>1\end{array}\right.\kern0.1em$$
(30)

For reinforced concrete,

$${k}_c=\left\{\begin{array}{c}\frac{{\overline{\varepsilon}}_{2s}}{{\zeta \varepsilon}_0}\left(1-\frac{{\overline{\varepsilon}}_{2s}}{3{\zeta \varepsilon}_0}\right)\kern0.3em ,\kern7.099996em \frac{{\overline{\varepsilon}}_{2s}}{{\zeta \varepsilon}_0}\kern0.3em \le 1\\ {}1-\frac{{\zeta \varepsilon}_0}{3{\overline{\varepsilon}}_{2s}}-\frac{{\left({\overline{\varepsilon}}_{2s}-{\zeta \varepsilon}_0\right)}^3}{3{\overline{\varepsilon}}_{2s}{\left(2{\varepsilon}_0-{\zeta \varepsilon}_0\right)}^2},\kern1.5em \frac{{\overline{\varepsilon}}_{2s}}{{\zeta \varepsilon}_0}\kern0.4em >1\end{array}\right.$$
(31)
  1. (7)

    Constitutive laws of the concrete in shear:

For prestressed concrete,

$${\tau}_{21}^c=\frac{1}{2}\frac{\sigma_1^c-{\sigma}_2^c}{\varepsilon_1-{\varepsilon}_2}{\gamma}_{21}+\frac{\sigma_{ci}}{2}$$
(32)

For reinforced concrete,

$${\tau}_{21}^c=\frac{1}{2}\frac{\sigma_1^c-{\sigma}_2^c}{\varepsilon_1-{\varepsilon}_2}{\gamma}_{21}$$
(33)
  1. (8)

    Constitutive laws of the prestressed steel:

$${f}_{ps}=\left\{\begin{array}{c}{E}_{ps}{\overline{\varepsilon}}_{ps},\kern7.799995em {\overline{\varepsilon}}_{ps}\le 0.7{f}_{pu}/{E}_{ps}\\ {}\frac{E_{ps}^{\prime }{\overline{\varepsilon}}_{ps}}{{\left[1+{\left({E}_{ps}^{\prime }{\overline{\varepsilon}}_{ps}/{f}_{pu}\right)}^4\right]}^{\frac{1}{4}}},\kern0.9000001em {\overline{\varepsilon}}_{ps}>0.7{f}_{pu}/{E}_{ps}\end{array}\right.$$
(34)

where \({\overline{\varepsilon}}_{ps}=\left({\overline{\varepsilon}}_{pi}-{\overline{\varepsilon}}_{li}\right)+{\overline{\varepsilon}}_l^c\).

  1. (9)

    Constitutive laws of the steel bars embedded in concrete:

For prestressed concrete,

$${f}_s^c=\left\{\begin{array}{c}{E}_s\kern0.1em {\overline{\varepsilon}}_s^c,\kern14.50002em {\overline{\varepsilon}}_s^c\le {\overline{\varepsilon}}_{sn}\\ {}\left(0.91-2{B}_s\right){f}_{sy}+\left(0.02+0.25{B}_s\right){E}_s{\overline{\varepsilon}}_s^c,\kern0.6em {\overline{\varepsilon}}_s^c>{\overline{\varepsilon}}_{sn}\kern0.1em \end{array}\right.$$
(35)

For reinforced concrete,

$${f}_s=\left\{\begin{array}{c}{E}_s\kern0.1em {\overline{\varepsilon}}_s,\kern14.50002em {\overline{\varepsilon}}_s\le {\overline{\varepsilon}}_{sn}\\ {}\left(0.91-2{B}_s\right){f}_{sy}+\left(0.02+0.25{B}_s\right){E}_s{\overline{\varepsilon}}_s,\kern0.6em {\overline{\varepsilon}}_s>{\overline{\varepsilon}}_{sn}\kern0.1em \end{array}\right.$$
(36)
  1. (10)

    Convergence criteria based on equilibriums:

For prestressed concrete,

$${\rho}_l{f}_l^c+{\rho}_{ps}{f}_{ps}-{\rho}_{li}{f}_{li}-{\rho}_{pi}{f}_{pi}+{\rho}_l{f}_t^c=-\left({\sigma}_2^c+{\sigma}_1^c-{\sigma}_{ci}\right)$$
(37)
$${\rho}_l{f}_l^c+{\rho}_{ps}{f}_{ps}-{\rho}_{li}{f}_{li}-{\rho}_{pi}{f}_{pi}-{\rho}_t{f}_t^c=-\left(2{\tau}_{21}^c-{\sigma}_{ci}\right)$$
(38)

For reinforced concrete,

$${\rho}_l{f}_l+{\rho}_t{f}_t=-\left({\sigma}_2^c+{\sigma}_1^c\right)$$
(39)
$${\rho}_l{f}_l-{\rho}_t{f}_t=-2{\tau}_{21}^c$$
(40)

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Shen, K., Wan, S., Zhu, Y. et al. A softened membrane model for single-box multi-cell composite box-girders with corrugated steel webs under pure torsion. ABEN 3, 2 (2022). https://doi.org/10.1186/s43251-022-00052-3

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s43251-022-00052-3

Keywords
