- original innovation
- Open Access
Adding ceramic polishing waste as filler to reduce paste volume and improve carbonation and water resistances of mortar
Advances in Bridge Engineering volume 2, Article number: 3 (2021)
The use of ceramic waste in concrete/mortar production as aggregate replacement or cement replacement has been under consideration in the last decade to find an effective way to tackle the growing hazard of ceramic waste disposal. In this study, the authors reutilize ceramic polishing waste (CPW) as a filler to replace an equal volume of cement paste in mortar while keeping the mixture proportions of the cement paste unchanged, i.e., in a new way as paste replacement. This mixture design strategy allows a larger amount of CPW to be added to substantially reduce the paste volume, cement and carbon footprint. The mortar mixes so produced had been subjected to carbonation and water absorption tests, and the results showed that as paste replacement, the CPW can significantly enhance the carbonation and water resistances, in addition to the environmental benefits of reducing waste, cement and carbon footprint. Regression analysis of test results indicated that for carbonation resistance, the cementing efficiency factor of the CPW was around 0.5, whereas for water resistance, the cementing efficiency factor was higher than 1.0 at low CPW content and lower than 1.0 at high CPW content.
In 2019, waste recycling has once again become the focus of many heated discussions among environmentalists and politicians, not because the technology in this field has achieved major advancement, but because scandals have revealed that “recycled waste” in some developed countries has, in reality, ended up in poorly managed landfills in developing countries (Wang et al. 2017; Harrabin and Edgington 2019; Wang et al. 2020; Li et al. 2021a). Therefore, people are still facing grim prospect for genuine “sustainable development” if proper actions are not taken promptly. An ideal waste recycling process should involve effective reutilization of the waste as raw materials in manufacturing or construction. In this study, a new way of reutilizing ceramic waste in concrete/mortar production, which allows a greater consumption of the waste per volume of production, is explored.
There are two main sources of ceramic waste (de Brito et al. 2005; Pacheco-Torgal and Jalali 2010): (a) from the production of red-paste-related products like bricks and roof tiles; and (b) from the production of ceramic products like wall tiles, floor tiles and sanitary wares. In previous studies, the ceramic waste has been used either as aggregate replacement (as shown in Fig. 1a) or cement replacement (as shown in Fig. 1b). When used as aggregate replacement, it was added to replace fine aggregate (Binici 2007; Lopez et al. 2007; Guerra et al. 2009; Torkittikul and Chaipanich 2010; Siddique et al. 2018) or coarse aggregate (Senthamarai and Manoharan 2005; Suzuki et al. 2009; Medina et al. 2012; Feng et al. 2013) or both (Halicka et al. 2013; Awoyera et al. 2018). Such usage may offer certain benefits to the performance of concrete. For instance, the addition of porous ceramic waste as aggregate can provide internal water curing for high performance concrete (Suzuki et al. 2009). When used as cement replacement, it has been shown that ceramic waste powders have certain pozzolanic reactivity and thus may be added to reduce the cement content, while still attaining satisfactory strength (Pereira-de-Oliveira et al. 2012; Heidari and Tavakoli 2013; Mas et al. 2015; Kannan et al. 2017; Aly et al. 2019). Meanwhile, very fine ceramic waste has also been used in cement production (Ay and Ünal 2000; García-Díaz et al. 2011), but this is outside the scope of the present research, which is on the direct reutilization of ceramic waste in concrete/mortar production.
The fresh properties of the concrete/mortar produced would be affected by the addition of ceramic waste. Medina et al. (2013a) discovered that the shear yield stresses of cement mixtures under fresh state would be lowered due to the addition of fine ceramic waste powder. De Matos et al. (2018) found that porcelain polishing residues having a mean particle size of around 10 μm could be used to produce self-compacting concrete with similar rheological properties but better passing ability if added to replace cement by not more than 20%. The hardened properties would also be affected, beneficially or adversely. Correia et al. (2006) conducted a series of tests on the abrasive and water resistances of concrete made with recycled ceramic coarse aggregate and noted that the abrasive resistance was improved by the use of recycled ceramic coarse aggregate, but the water resistance was substantially afflicted. Medina et al. (2013b) showed that the use of ceramic waste as coarse aggregate would enhance the resistance against freeze-thaw cycles. Similarly, Kuan et al. (2020) pointed out that using ceramic powder could improve the freeze–thaw cycle resistance of concrete. However, Senthamarai et al. (2011) observed that the use of ceramic waste as coarse aggregate would adversely affect both the water and chloride resistances of concrete.
In this study, the authors focus on carbonation and water resistances of mortar containing fine ceramic polishing waste (CPW) powder. The mix design strategy adopted herein regarding the usage of CPW is neither as aggregate replacement nor as cement replacement, but as “paste replacement”. The “paste replacement” method is to partially replace the cement paste volume (cement + water) in the mortar/concrete by an equal volume of solid powder (as shown in Fig. 1c). It should be noted that by using this method, whilst the cement paste volume is lowered, the mix proportions of the cement paste would not be changed (i.e. the water/cement ratio is unchanged). If the solids have some degree of pozzolanic reactivity, part of them will end up forming cementing compounds while the rest will become fillers. A series of previous studies conducted by the authors’ research group have shown that this strategy of paste replacement can be applied to the addition of limestone fines (Li and Kwan 2015; Li et al. 2017a), marble dust (Li et al. 2018a; Li et al. 2019a), granite dust (Li et al. 2018b; Li et al. 2019b), clay brick waste (Li et al. 2019c) and ceramic waste (Li et al. 2019e; Li et al. 2020a; Li et al. 2020b) to mortar/concrete mixtures with satisfactory performances attained. The applicability of such strategy to the addition of CPW to mortar mixtures for reducing the paste volume and improving the carbonation and water resistances is to be investigated herein so as to extend this strategy to CPW.
The raw materials of the mortar mixes consisted of water, cement, fine aggregate, ceramic polishing waste (CPW) and superplasticizer (SP), of which the technical details are as follows: (a) the cement was PO 42.5 ordinary Portland cement produced in compliance with the Chinese Standard GB 175–2007 (2007) and had a specific gravity of 3.10; (b) the fine aggregate was river sand having a maximum particle size of 1.18 mm, a specific gravity of 2.58, a water absorption of 1.10%, and a moisture content of 0.10%; (c) the CPW was a light-grey powder with a specific gravity of 2.43; and (d) the SP was a PC-based admixture with 20% solid by mass and a specific gravity of 1.05.
The CPW was obtained from a ceramics factory in Foshan city, a famous powerhouse of ceramics production in China. The CPW was generated during polishing of ceramic tiles. The original CPW collected was wet with some debris inside. In order to dry and minimize variation in quality, the CPW was treated as follows: first, the CPW was heated with an oven at 105 °C for 8 h to remove the water and then mechanically sieved using a 1.18 mm sieve to remove the debris. After the treatment, the CPW was turned to a light-grey dry powder. The SEM image and XRD pattern of the CPW are shown in Fig. 2a and b, respectively. From the SEM image, it is clear that the CPW particles are angular in shape. From the XRD pattern, it is evident that the CPW is a typical ceramic material composed mainly of SiO2, Al2O3, Fe2O3 and CaO, indicating that the CPW should have certain pozzolanic properties.
The grading curves of the main ingredients are presented in Fig. 3. It is noted that compared to the cement, the CPW has a similar pattern of particle size distribution but a marginally larger mean particle size. In other words, the CPW was almost as fine as the cement.
A total of 20 mortar mixes in four groups, with each group having a different water/cement (W/C) ratio among the values of 0.40, 0.45, 0.50 and 0.55, were designed and tested. The information on the mix proportions is comprehensively depicted in Table 1. For each of the mortar mixes, the volume of the fine aggregate accounted for, nominally, 40% of the total mortar volume, with the remaining 60% being the cement paste (cement + water) only or the cement paste and CPW. In each group of the mixes, which had the same W/C ratio, the combinations of the “cement paste + CPW” in terms of nominal percentages of the total mortar volume are (60% + 0%), (55% + 5%), (50% + 10%), (45% + 15%) and (40% + 20%), as illustrated in the second and the third columns of Table 1. The identifications of the mixes follow the format of “X-Y” where the W/C ratio of the mix is placed at the position of X and the “CPW volume” (defined as the ratio of the CPW’s volume to the total volume of mortar) at the position of Y.
The addition of SP was to control the mortar mixes to have similar workability, and let them all meet a certain workability requirement, which in the current study, was set as having a flow spread measured by the mini slump cone test (Okamura and Ouchi (2003) of 250 ± 50 mm, or in other words, 200 to 300 mm. Therefore, the SP dosages (mass of liquid SP as a percentage of combined mass of cement + CPW) of the mortar mixes varied from one another and were determined through the process of trial mortar mixing, in which the SP was dosed into the mortar mixture bit by bit until the measured value of flow spread was within the required range. The results in SP dosage obtained from the trials for all the mortar mixes were then applied during the final production of mortar samples for subsequent testing.
Mixing procedure and testing methods
A 10 Litre horizontal single-shaft mixer was used to mix each batch of mortar and the mixing procedure was presented as follows: (1) the cement, CPW, water and one half of SP were added and mixed for 60 s; (2) the fine aggregate and the remaining half of SP were added, and the mixing continued for 60 s.
The details of the mini slump cone test introduced by Okamura and Ouchi can be found in Ref. (Okamura and Ouchi 2003).

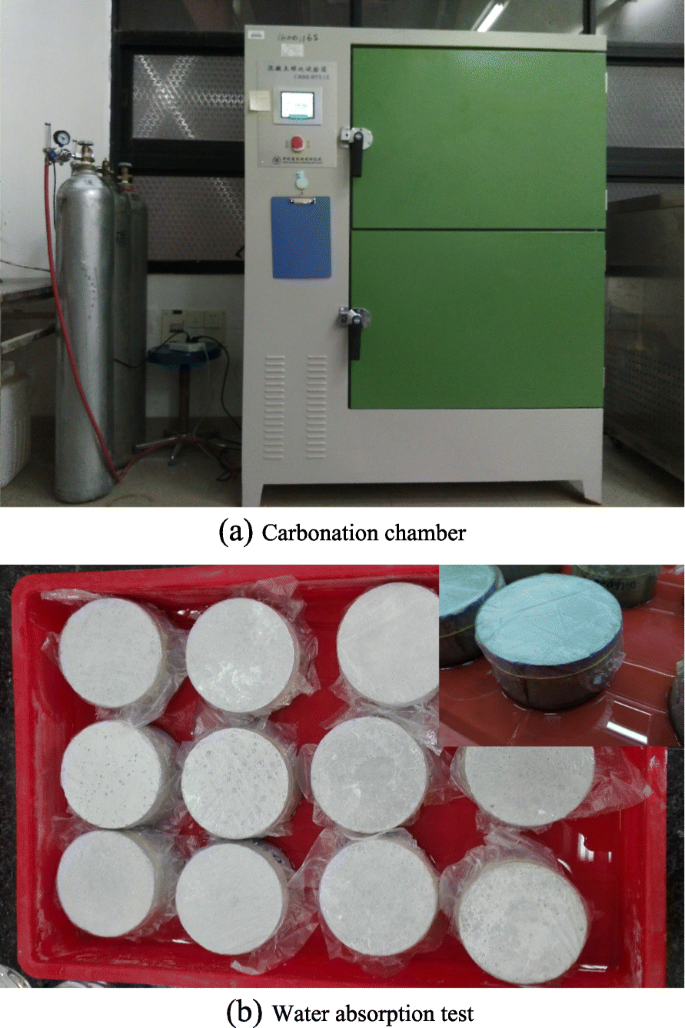

The carbonation resistance, which is an important aspect of durability, of the mortar was evaluated through the carbonation test implemented in compliance with Chinese Standard GB/T 50082–2009 (2009). During the carbonation tests, the mortar specimens were placed in a carbonation chamber, as shown in Fig. 4a, to allow intrusion of carbon dioxide through the exposed surfaces. The depths of the intrusion were then measured as the carbonation depths to reflect the carbonation resistances of the specimens. For details of the carbonation test, the following reference is referred to (Li et al. 2017b).
The water resistance, which is another important aspect of durability, of the mortar can be reflected by the water absorption rates. In the current study, the tests to measure the initial/secondary water absorption rates of the mortar were carried out in compliance with American Standard ASTM C1585–04 (2004) (as shown in Fig. 4b). Since it is a common test, the testing procedures are not repeated herein.
Lastly, in order to study the effect of CPW on the microstructure, micrographs of the hardened mortar samples were captured by using the Hitachi S-3400 N-II scanning electron microscope (SEM).
SP dosage and flow spread
The SP dosages added to achieve the target flow spread of within 200 to 300 mm are listed in the last column of Table 1, while the actual flow spread achieved, which were all within the target range, are tabulated in the second column of Table 2. From these results, it can be seen that as expected, the SP dosage was generally higher at a lower W/C ratio and lower at a higher W/C ratio. More importantly, at a fixed W/C ratio, the SP dosage increased significantly as the CPW volume increased. This was because of the decrease in water content of the mortar mix.
Table 2 depicts the carbonation depths for all the mortar mixes. When the carbonation depths of all the mortar mixes are plotted against the CPW volume in Fig. 5, it is found that when the value of CPW volume was unchanged, a lower W/C ratio would result in a smaller carbonation depth of the mortar. For example, when the W/C ratio decreased from 0.55 to 0.40 while the CPW volume was kept as 0%, the carbonation depth would be reduced from 7.70 mm to 3.27 mm. Such variation of carbonation depth with the W/C ratio is expected, since the W/C ratio is well known to be the main factor affecting the carbonation resistance of mortar (Li et al. 2017b; Leemann et al. 2015).
More significantly, when the W/C ratio was fixed, the carbonation depth of the mortar would become smaller in the presence of higher CPW volume. For instance, when the CPW volume increased from 0% to 20% while the W/C ratio was maintained at 0.55, the carbonation depth would drop from 7.70 mm to 2.13 mm. Consequently, the presence of CPW as paste replacement has enhanced the carbonation resistance of the mortar. The probable reason is the densification of the microstructure after the addition of the CPW, as will be seen from the SEM images later.
Water absorption rates
As mentioned previously, the initial and the secondary water absorption rates of each mortar mix were measured through water absorption tests, with the values of presented in Table 2.
When the two types of water absorption rates for the mortar mixes with various W/C ratios are plotted against the corresponding CPW values in Figs. 6 and 7, respectively, it is found that: at a fixed CPW value, a lower W/C ratio would lead to a lower initial/secondary water absorption rate. For instance, when the W/C ratio decreased from 0.55 to 0.40 while the CPW volume was kept at 0%, the initial water absorption rate would go down from 14.07 × 10− 4 mm/s1/2 to 6.42 × 10− 4 mm/s1/2, and the secondary water absorption rate would go down from 13.02 × 10− 4 mm/s1/2 to 3.70 × 10− 4 mm/s1/2. Such change of water absorption rate with the W/C ratio is reasonable, because similar results have been found in other studies (Li and Kwan 2015; Du et al. 2016).
More importantly, when the W/C ratio was kept unchanged, increasing the CPW amount would result in a lower water absorption rate. For example, when the CPW volume was raised from 0% to 20% while the W/C ratio was maintained as 0.55, the initial water absorption rate would go down from 14.07 × 10− 4 mm/s1/2 to 3.71 × 10− 4 mm/s1/2, and the secondary water absorption rate would go down from 13.02 × 10− 4 mm/s1/2 to 1.50 × 10− 4 mm/s1/2. Therefore, it is evident that the paste replacement method is a very effective way of adding the CPW to enhance the water resistance of mortar.
Microstructure from SEM images

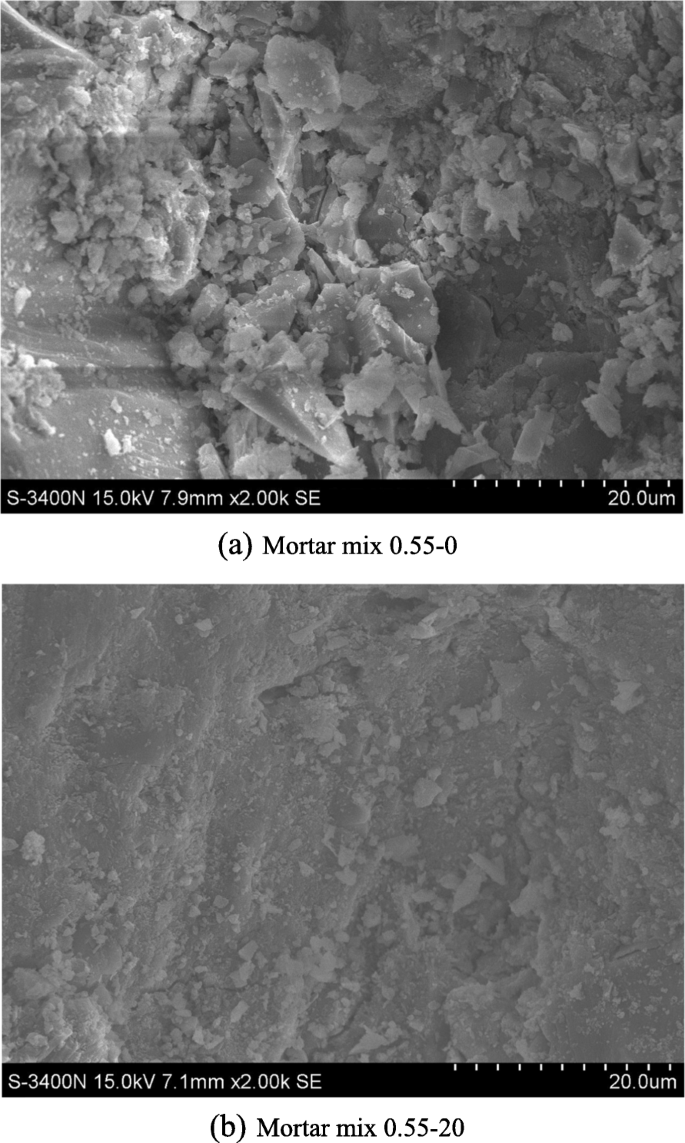

The SEM images of the mortar specimens 0.55–0 and 0.55–20 are presented in Figs. 8a and 7b, respectively. Through comparison, it is found that the microstructure was rather loose in the specimen 0.55–0, which has no CPW content, but significantly more compact in the specimen 0.55–20, which has 20% CPW volume. Therefore, the addition of CPW as paste replacement would densify the microstructure and reduce the voids inside, and thus should improve the impermeability to increase the carbonation and water resistances of mortar.
The explanations on the densification of microstructure by adding CPW may be given as follows: (1) adding CPW can fill into the voids between aggregate particles so as to reduce the volume of voids to be filled with cement paste, so as to improve the packing density of the particle system; (2) the CPW has certain pozzolanic reactivity and thus could participate in hydration reaction to produce more C-S-H gel to fill the voids; (3) the addition of more SP to achieve the required workability would help to better disperse the cement grains and CPW particles to allow more uniform mixing and better compaction during casting.
Detailed analysis of test results
Concurrent changes in cement content and durability performance
From Table 1, it can be seen that the addition of CPW to replace an equal volume of cement paste would allow the consumption of waste up to 20% of the mortar volume and whittle down the cement content by up to 33%, while achieving higher carbonation and water resistances for improving the durability performance. To illustrate the concurrent reduction in cement content and improvement in durability, the carbonation depth, initial water absorption rate and secondary water absorption rate are plotted against the cement content for different CPW volumes and W/C ratios in Figs. 9, 10 and 11, respectively. It is evident that the conventional method of decreasing the W/C ratio to improve the durability would increase the cement content, whereas the proposed method of adding CPW as paste replacement to improve the durability would decrease the cement content for reducing carbon footprint and increase the waste consumption for reducing waste disposal.
Compared to the addition of solid waste as aggregate replacement, which does not reduce the cement content and might not improve the mortar performance, and the addition of solid waste as cement replacement, which often adversely affects the mortar performance and therefore imposes a severe limit on the amount of solid waste to be added, this paste replacement method offers the advantages in consuming a larger amount of waste, reducing a larger amount of cement and improving the mortar performance, all at the same time. However, this paste replacement method is applicable only if the solid waste to be added is almost as fine as the cementitious materials so that the solid waste would intermix with the cement paste to form a powder paste having the same volume as the original cement paste for filling up the voids between aggregate particles. In fact, such addition of the solid waste as paste replacement may also be viewed as an addition of the solid waste as a filler to fill up part of the voids between aggregate particles so that the cement paste volume needed may be reduced by the volume of solid waste added. This would increase the packing density of the solid waste plus aggregate mixture (Yu et al. 1997; Zhang et al. 2011; Cepuritis et al. 2014; Li et al. 2019d) and quite possibly, this is one of the root causes for the improvement in mortar performance.
Cementing efficiency of CPW
For evaluating the effectiveness of supplementary cementitious material (SCM) in performance attributes of cement-based material, it has been proposed to employ the concept of cementing efficiency (Hobbs 1988; Wong and Abdul Razak 2005; European Committee for Standardization 2013; Li et al. 2021b). Basically, the cementing efficiency of a SCM is evaluated in terms of a cementing efficiency factor (CEF), defined as the mass of cement that is replaceable per mass of the SCM added without changing the performance. Smith (1967) first proposed this concept and suggested that a CEF of 0.25 for fly ash (FA) may be adopted for preliminary design of FA concrete. Papadakis and Tsimas (2002) tested the durability performance of low-calcium FA and high-calcium FA, and obtained their carbonation resistance CEFs as 0.5 and 0.7, respectively.
Previous studies by other researchers (Pereira-de-Oliveira et al. 2012; Heidari and Tavakoli 2013; Mas et al. 2015; Kannan et al. 2017) have indicated that ceramic waste in powder form can have certain pozzolanic reactivity and thus cementing property, but so far, such cementing property has never been quantified. Herein, it is proposed to evaluate the cementing property of the CPW in terms of the CEF, which is defined as the ratio of the equivalent mass of cement to the mass of CPW added (Hobbs 1988; Wong and Abdul Razak 2005).
To evaluate the cementing efficiency of the CPW, an effective water to cementitious materials ratio (W/CMeff) is introduced, as given below:
in which α is the CEF of CPW; and mW, mC and mCPW are the water, cement and CPW contents in kg/m3. It should be noted that the values of α for the carbonation depth, initial water absorption rate and secondary water absorption rate are not the same. For differentiation, the α for carbonation depth is denoted by αc, the α for initial water absorption rate is denoted by αw,I and the α for secondary water absorption rate is denoted by αw,II. To evaluate each CEF, the corresponding mortar performance is correlated to W/CMeff by regression analysis, and different values of α are tried until the highest R2 value is obtained.
Fig. 12 presents the analysis results for the carbonation resistance, where the carbonation depth is correlated to W/CMeff using the following equation:
in which the carbonation depth is in mm. Maximization of the R2 value yielded αc = 0.51 and R2 = 0.969. During the analysis, it appeared that the CEF αc is not sensitive to the CPW content. Hence, it may be said that for evaluation of the carbonation resistance, the CPW may be treated as equivalent to 0.5 times its mass of cement. The R2 value so obtained is very high, suggesting that the correlation equation above may be used to predict the carbonation depth of mortar made with CPW added as paste replacement.

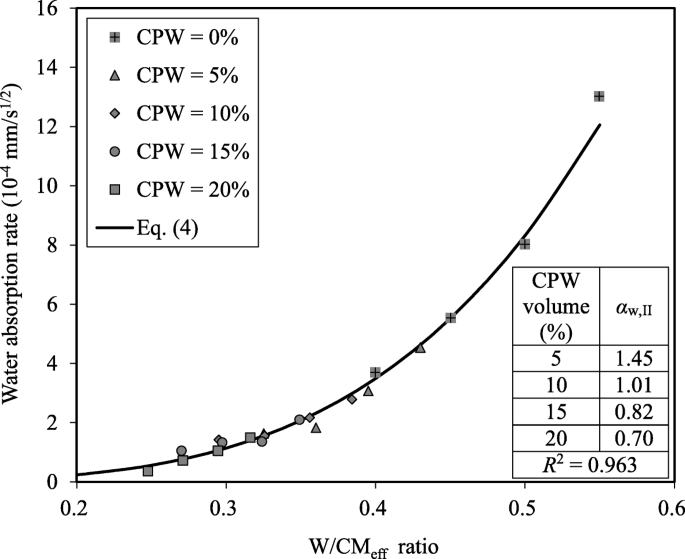

Figs. 13 and 14 present the analysis results for the water resistance, where the initial water absorption rate and secondary water absorption rate are correlated to W/CMeff using the following equations:
in which the two types of water absorption rates are both in × 10− 4 mm/s1/2. However, the analysis revealed that the CEFs αw,I and αw,II are both dependent on the CPW content, The values of αw,I and αw,II so determined are given in the tables inserted in the two figures. For the initial water absorption rate, the value of αw,I varies from 1.20 at a CPW volume of 5% to 0.56 at a CPW volume of 20%. For the secondary water absorption rate, the value of αw,II varies from 1.45 at a CPW volume of 5% to 0.70 at a CPW volume of 20%. Roughly, for evaluation of the water resistance, the CPW may be treated conservatively as equivalent to 0.6 times its mass of cement. The R2 values so obtained for Eqs. (3) and (4) are 0.979 and 0.963, respectively, which are both very high, suggesting that these two equations may be used to predict the two types of water absorption rates of mortar made with CPW added as paste replacement.
The feasibility of adding ceramic polishing waste (CPW) as paste replacement in mortar to reduce waste disposal and cement consumption, and also to improve durability has been studied by making a series of mortar mixes with different CPW volumes (as % of mortar volume) and W/C ratios for testing of their carbonation and water resistances. Up to 20% CPW by volume of mortar had been added and very promising results were obtained, from which the following conclusions are made.
The addition of up to 20% CPW to replace an equal volume of cement paste in mortar would reduce the paste volume and cement content by 33% without adversely affecting the performance of the mortar.
The addition of CPW up to 20% by volume of mortar as paste replacement would dramatically reduce the carbonation depth by more than 70% and the initial/secondary water absorption rates by also more than 70%. Densification of the microstructure, as revealed by SEM images, is the most probable cause of such dramatic improvements in durability.
Compared to the conventional method of decreasing the W/C ratio to improve durability, which is less effective in increasing the carbonation and water resistances and would increase the cement content, this method of adding CPW as paste replacement to improve durability is more effective and would at the same time reduce the cement content.
Compared to the method of adding CPW as aggregate replacement, which does not reduce the cement content, and the method of adding CPW as cement replacement, which may not improve the durability performance, this method of adding CPW as paste replacement is a much better method in terms of waste reutilization, carbon reduction and durability performance.
The pozzolanic reactivity of the CPW used has been quantified in terms of cementing efficiency factors. For the carbonation depth, the cementing efficiency factor has been found to be insensitive to the CPW volume and is generally around 0.5. For the initial and secondary water absorption rates, the cementing efficiency factors have been found to decrease with increasing CPW volume, but nevertheless remain at around 0.6 or higher even at a CPW volume of 20%.
Availability of data and materials
Ceramic polishing waste
- W/C ratio:
Scanning electron microscope
- W/CMeff :
Effective water to cementitious materials ratio
Cementing efficiency factor of CPW
- αc :
Cementing efficiency factor of CPW for carbonation depth
- αw,I :
Cementing efficiency factor of CPW for initial water absorption rate
- αw,II :
Cementing efficiency factor of CPW for secondary water absorption rate
- mW :
- mC :
- mCPW :
Aly ST, El-Dieb AS, Taha MR (2019) Effect of high-volume ceramic waste powder as partial cement replacement on fresh and compressive strength of self-compacting concrete. J Mater Civ Eng 31(2):04018374
ASTM International (2004) ASTM C1585–04. Standard test method for measurement of rate of absorption of water by hydraulic-cement concretes
Awoyera PO, Akinmusuru JO, Dawson AR, Ndambuki JM, Thom NH (2018) Microstructural characteristics, porosity and strength development in ceramic-laterized concrete. Cem Concr Compos 86:224–237
Ay N, Ünal M (2000) The use of waste ceramic tile in cement production. Cem Concr Res 30(3):497–499
Binici H (2007) Effect of crushed ceramic and basaltic pumice as fine aggregates on concrete mortars properties. Constr Build Mater 21(6):1191–1197
Cepuritis R, Wigum BJ, Garboczi EJ, Mørtsell E, Jacobsen S (2014) Filler from crushed aggregate for concrete: pore structure, specific surface, particle shape and size distribution. Cem Concr Compos 54:2–16
Correia JR, De Brito J, Pereira AS (2006) Effects on concrete durability of using recycled ceramic aggregates. Mater Struct 39(2):169–177
de Brito J, Pereira AS, Correia JR (2005) Mechanical behaviour of non-structural concrete made with recycled ceramic aggregates. Cem Concr Compos 27(4):429–433
de Matos PR, de Oliveira AL, Pelisser F, Prudêncio LR Jr (2018) Rheological behavior of Portland cement pastes and self-compacting concretes containing porcelain polishing residue. Constr Build Mater 175:508–518
Du H, Gao HJ, Dai PS (2016) Improvement in concrete resistance against water and chloride ingress by adding graphene nanoplatelet. Cem Concr Res 83:114–123
European Committee for Standardization (2013) EN 206: 2013. Concrete - specification, performance, production and conformity
Feng D, Yi J, Wang D (2013) Performance and thermal evaluation of incorporating waste ceramic aggregates in wearing layer of asphalt pavement. J Mater Civ Eng 25(7):857–863
García-Díaz I, Palomo JG, Puertas F (2011) Belite cements obtained from ceramic wastes and the mineral pair CaF2/CaSO4. Cem Concr Compos 33(10):1063–1070
General Administration of Quality Supervision, Inspection and Quarantine, China (2007) GB 175–2007. Common Portland Cement. (in Chinese)
Guerra I, Vivar I, Llamas B, Juan A, Moran J (2009) Eco-efficient concretes: the effects of using recycled ceramic material from sanitary installations on the mechanical properties of concrete. Waste Manag 29(2):643–646
Halicka A, Ogrodnik P, Zegardlo B (2013) Using ceramic sanitary ware waste as concrete aggregate. Constr Build Mater 48:295–305
Harrabin R and Edgington T (2019) Recycling: Where is the plastic waste mountain? BBC Real Check (online). Available at: https://www.bbc.com/news/science-environment-46566795
Heidari A, Tavakoli D (2013) A study of the mechanical properties of ground ceramic powder concrete incorporating nano-SiO2 particles. Constr Build Mater 38:255–264
Hobbs DW (1988) Portland-pulverized fuel ash concretes: water demand, 28 day strength, mix design and strength development. Proc Inst Civ Eng 85(2):317–331
Kannan DM, Aboubakr SH, El-Dieb AS, Taha MM (2017) High performance concrete incorporating ceramic waste powder as large partial replacement of Portland cement. Constr Build Mater 144:35–41
Kuan P, Hongxia Q, Kefan C (2020) Reliability analysis of freeze–thaw damage of recycled ceramic powder concrete. J Mater Civ Eng 32(9):05020008
Leemann A, Nygaard P, Kaufmann J, Loser R (2015) Relation between carbonation resistance, mix design and exposure of mortar and concrete. Cem Concr Compos 62:33–43
Li LG, Chen JJ, Kwan AKH (2017a) Roles of packing density and water film thickness in strength and durability of limestone fines concrete. Mag Concr Res 69(12):595–605
Li LG, Huang ZH, Tan YP, Kwan AKH, Chen HY (2019a) Recycling of marble dust as paste replacement for improving strength, microstructure and eco-friendliness of mortar. J Clean Prod 210:55–65
Li LG, Huang ZH, Tan YP, Kwan AKH, Liu F (2018a) Use of marble dust as paste replacement for recycling waste and improving durability and dimensional stability of mortar. Constr Build Mater 166:423–432
Li LG, Kwan AKH (2015) Adding limestone fines as cementitious paste replacement to improve tensile strength, stiffness and durability of concrete. Cem Concr Compos 60:17–24
Li LG, Lin ZH, Chen GM, Kwan AKH, Li ZH (2019c) Reutilization of clay brick waste in mortar: Paste replacement versus cement replacement. J Mater Civ Eng 31(7):04019129
Li LG, Wang YM, Tan YP, Kwan AKH (2019b) Filler technology of adding granite dust to reduce cement content and increase strength of mortar. Powder Technol 342:388–396
Li LG, Wang YM, Tan YP, Kwan AKH, Li LJ (2018b) Adding granite dust as paste replacement to improve durability and dimensional stability of mortar. Powder Technol 333:269–276
Li LG, Xiao BF, Fang ZQ, Xiong Z, Chu SH, Kwan AKH (2021a) Feasibility of glass/basalt fiber reinforced seawater coral sand mortar for 3D printing. Addit Manuf https://doi.org/10.1016/j.addma.2020.101684
Li LG, Zheng JY, Ng PL, Kwan AKH (2021b) Synergistic cementing efficiencies of nano-silica and micro-silica in carbonation resistance and sorptivity of concrete. J Build Eng 33:101862
Li LG, Zhu J, Huang ZH, Kwan AKH, Li LJ (2017b) Combined effects of micro-silica and nano-silica on durability of mortar. Constr Build Mater 157:337–347
Li LG, Zhuo HX, Zhu J, Kwan AKH (2019d) Packing density of mortar containing polypropylene, carbon or basalt fibres under dry and wet conditions. Powder Technol 342:433–440
Li LG, Zhuo ZY, Kwan AKH, Zhang TS, Lu DG (2020b) Cementing efficiency factors of ceramic polishing residue in compressive strength and chloride resistance of mortar. Powder Technol 367:163–171
Li LG, Zhuo ZY, Zhu J, Chen JJ, Kwan AKH (2019e) Reutilizing ceramic polishing waste as powder filler in mortar to reduce cement content by 33% and increase strength by 85%. Powder Technol 355:119–126
Li LG, Zhuo ZY, Zhu J, Kwan AKH (2020a) Adding ceramic polishing waste as paste substitute to improve sulphate and shrinkage resistances of mortar. Powder Technol 362:149–156
Lopez V, Llamas B, Juan A, Moran JM, Guerra I (2007) Eco-efficient concretes: impact of the use of white ceramic powder on the mechanical properties of concrete. Biosyst Eng 96(4):559–564
Mas MA, Reig Cerdá L, Monzó J, Borrachero MV, Payá J (2015) Ceramic tiles waste as replacement material in Portland cement. Adv Cem Res 28(4):221–232
Medina C, Banfill PFG, de Rojas MS, Frías M (2013a) Rheological and calorimetric behaviour of cements blended with containing ceramic sanitary ware and construction/demolition waste. Constr Build Mater 40:822–831
Medina C, de Rojas MI, Frías M (2013b) Freeze-thaw durability of recycled concrete containing ceramic aggregate. J Clean Prod 40:151–160
Medina C, Frías M, De Rojas MS (2012) Microstructure and properties of recycled concretes using ceramic sanitary ware industry waste as coarse aggregate. Constr Build Mater 31:112–118
Ministry of Housing and Urban-Rural Development, China (2009) GB/T 50082–2009. Standard for test methods of long-term performance and durability of ordinary concrete. (in Chinese).
Okamura H, Ouchi M (2003) Self-compacting concrete. J Adv Concr Technol 1(1):5–15
Pacheco-Torgal F, Jalali S (2010) Reusing ceramic wastes in concrete. Constr Build Mater 24(5):832–838
Papadakis VG, Tsimas S (2002) Supplementary cementing materials in concrete: part I: efficiency and design. Cem Concr Res 32(10):1525–1532
Pereira-de-Oliveira LA, Castro-Gomes JP, Santos PM (2012) The potential pozzolanic activity of glass and red-clay ceramic waste as cement mortars components. Constr Build Mater 31:197–203
Senthamarai RM, Manoharan PD (2005) Concrete with ceramic waste aggregate. Cem Concr Compos 27(9–10):910–913
Senthamarai RM, Manoharan PD, Gobinath D (2011) Concrete made from ceramic industry waste: durability properties. Constr Build Mater 25(5):2413–2419
Siddique S, Shrivastava S, Chaudhary S (2018) Influence of ceramic waste as fine aggregate in concrete: Pozzolanic, XRD, FT-IR, and NMR investigations. J Mater Civ Eng 30(9):04018227
Smith IA (1967) The design of fly-ash concretes. Proc Inst Civil Eng 36(4):769–790
Suzuki M, Meddah MS, Sato R (2009) Use of porous ceramic waste aggregates for internal curing of high-performance concrete. Cem Concr Res 39(5):373–381
Torkittikul P, Chaipanich A (2010) Utilization of ceramic waste as fine aggregate within Portland cement and fly ash concretes. Cem Concr Compos 32(6):440–449
Wang D, Wang Q, Xue J (2020) Reuse of hazardous electrolytic manganese residue: Detailed leaching characterization and novel application as a cementitious material. Resour Conserv Recycl 154:104,645
Wang Q, Wang D, Chen H (2017) The role of fly ash microsphere in the microstructure and macroscopic properties of high-strength concrete. Cem Concr Compos 83:125–137
Wong HS, Abdul Razak H (2005) Efficiency of calcined kaolin and silica fume as cement replacement material for strength performance. Cem Concr Compos 35(4):696–702
Yu AB, Bridgwater J, Burbidge A (1997) On the modelling of the packing of fine particles. Powder Technol 92(3):185–194
Zhang T, Yu Q, Wei J, Zhang P, Chen P (2011) A gap-graded particle size distribution for blended cements: analytical approach and experimental validation. Powder Technol 214(2):259–268
The authors would like to acknowledge the financial support by the National Natural Science Foundation of China (Project Nos.: 51608131, 51678161 and 51808134), Colleges Innovation Project of Guangdong Province (Project No. 2017KTSCX061) and Pearl River S&T Nova Program of Guangzhou City (Project No. 201906010064).
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
About this article
Cite this article
Li, L.G., Ouyang, Y., Zhuo, ZY. et al. Adding ceramic polishing waste as filler to reduce paste volume and improve carbonation and water resistances of mortar. ABEN 2, 3 (2021). https://doi.org/10.1186/s43251-020-00019-2
- Carbonation resistance
- Cementing efficiency
- Ceramic polishing waste
- Water resistance
